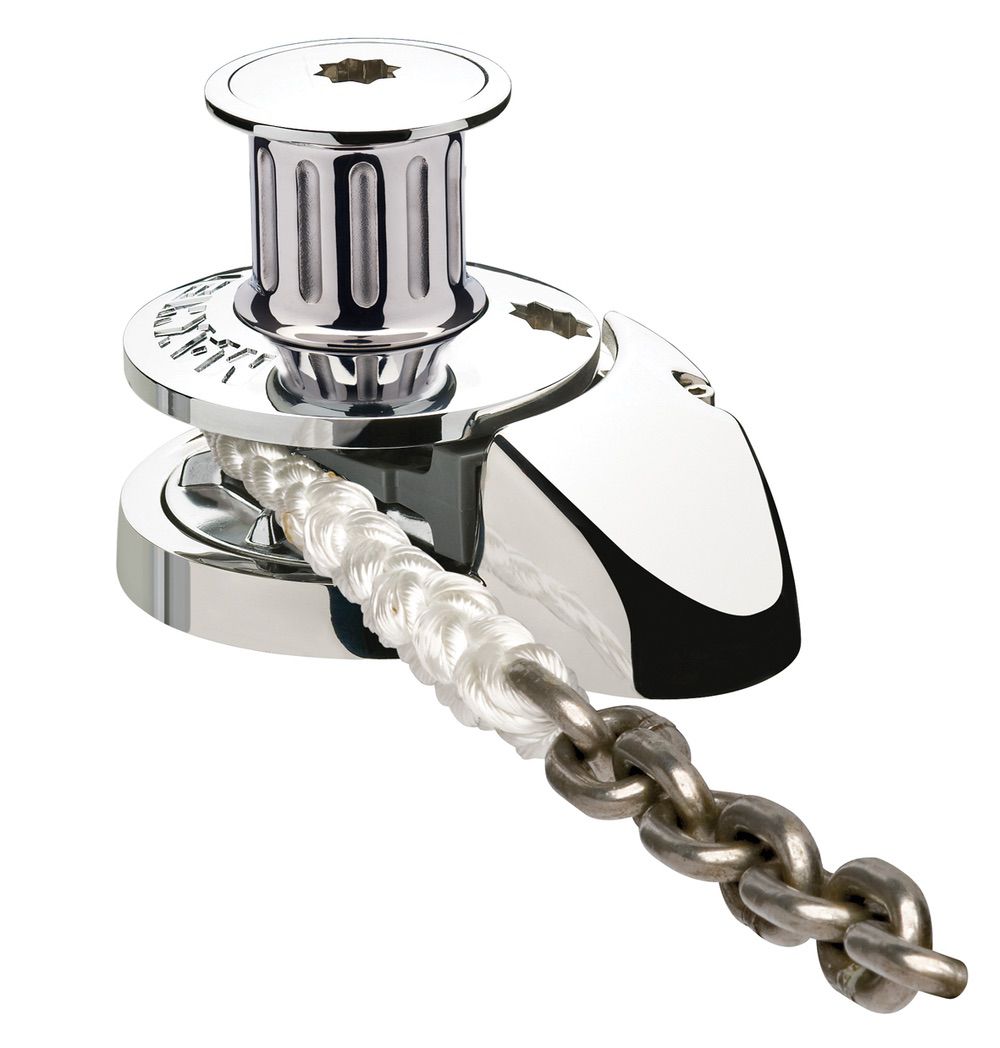

Maxwell Rc88cap12v Windlass

RC Rope/Chain SeriesVertical Rope/Chain Windlass with Below-deck Motor Maxwell's all new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. RC10 and RC8 are available in both capstan and low profile versions. RC6 is available in low profile version only.

• The all new RC8-6 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope
• The larger RC8-8 can be used with 8mm (5/16") chain spliced to 14mm (9/16") three strand or 8-plait rope
• The revolutionary, and patented, new Wave Design chainwheel is able to accommodate a wide range of chain pitch differences within the specified chain size diameters
• Sleek, low profile and MAX-grip capstan drum versions are available to suit individual user preference
• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass
• Unique spacer tube design; Cone type clutch/brake mechanism permits manual, free fall anchoring
• Full disassembly capability of top works utilising handle provided, a screw driver and an Allen key
• Manufactured from marine grade 316 stainless steel for long term durability; Heavy duty stainless steel pressure arm
• In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure
• Huge through deck hawse pipe throat, Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel
