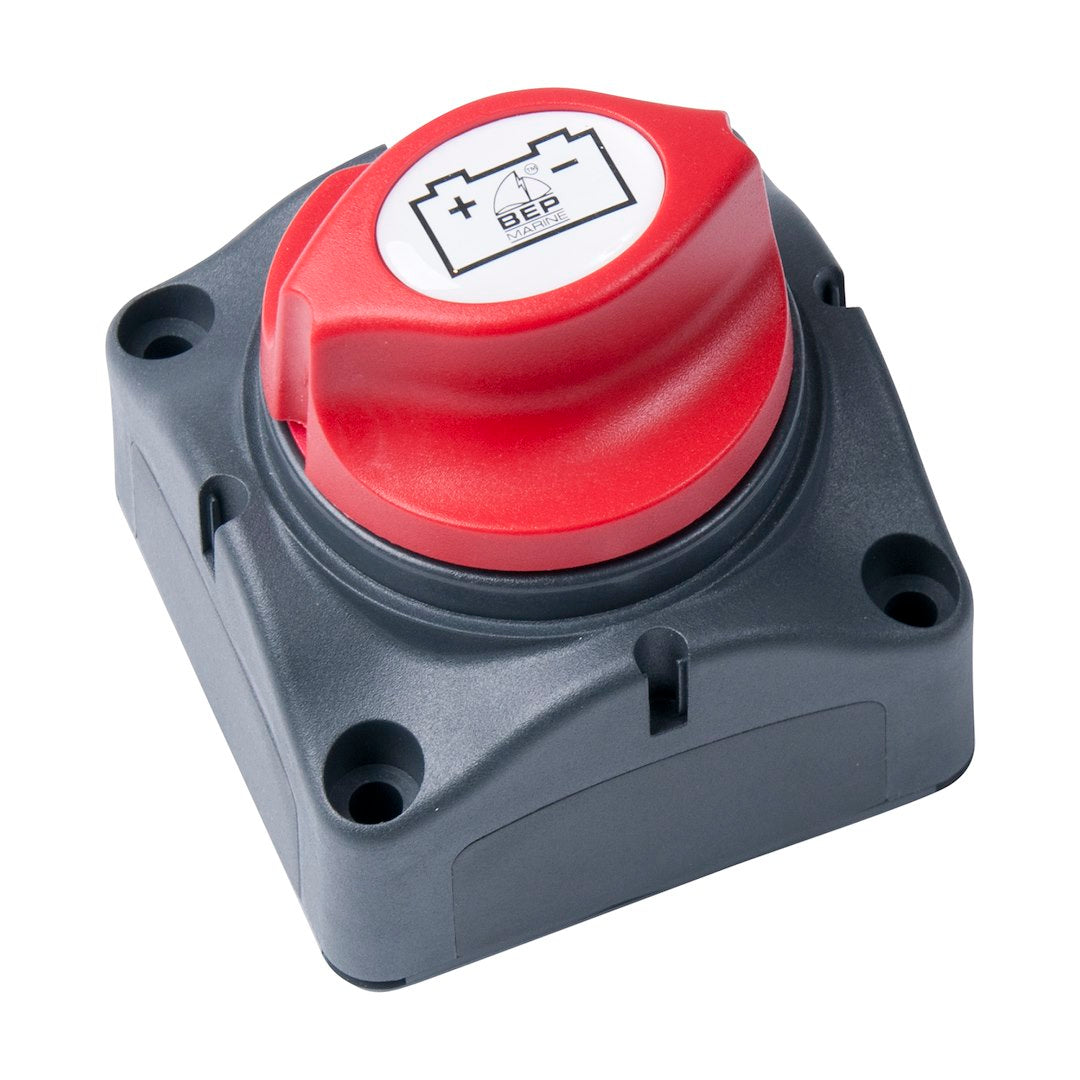

Bep Marine 701 Battery Disconnect Switch

This switch offers a number of unique features, the highlight being the patented Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob can be removed by switching to an counterclockwise 45 Degree position. This control knob also features an interchangeable labeling system allowing a full range of applications. Three removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits. This ensures that the switch meets ABYC requirements. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 Degree Celsius (212 Degree Fahrenheit) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings.

• Tin-Plated Copper Studs And Nuts
• Ignition Protected
• Can Be Either Surface Or Recess Mounted By Cutting A 2.1 Inch Hole
• Please Note Selector Switches Will Not Separate Electronics From Harmful Engine Starting Spikes
• Patented Contour Locking System Allows Switch To Be A Stand Alone Unit Or Locked Together With Other Switches
• Control Knob Can Be Removed By Switching To Counter-Clockwise 45 Degree Position
• Three Removable Side Plates For Access Of Up To 1/0 Cables Plus A Rear Cover Insulating The Rear Terminals Against Any Short Circuits
• Limited 2 Year Warranty
