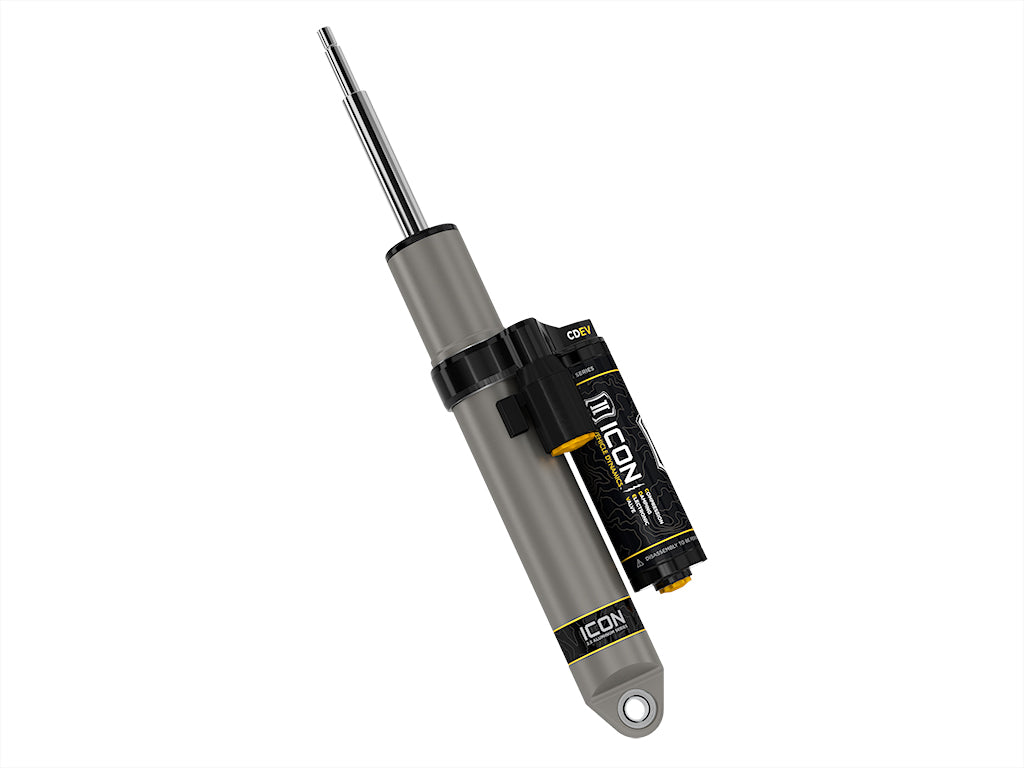

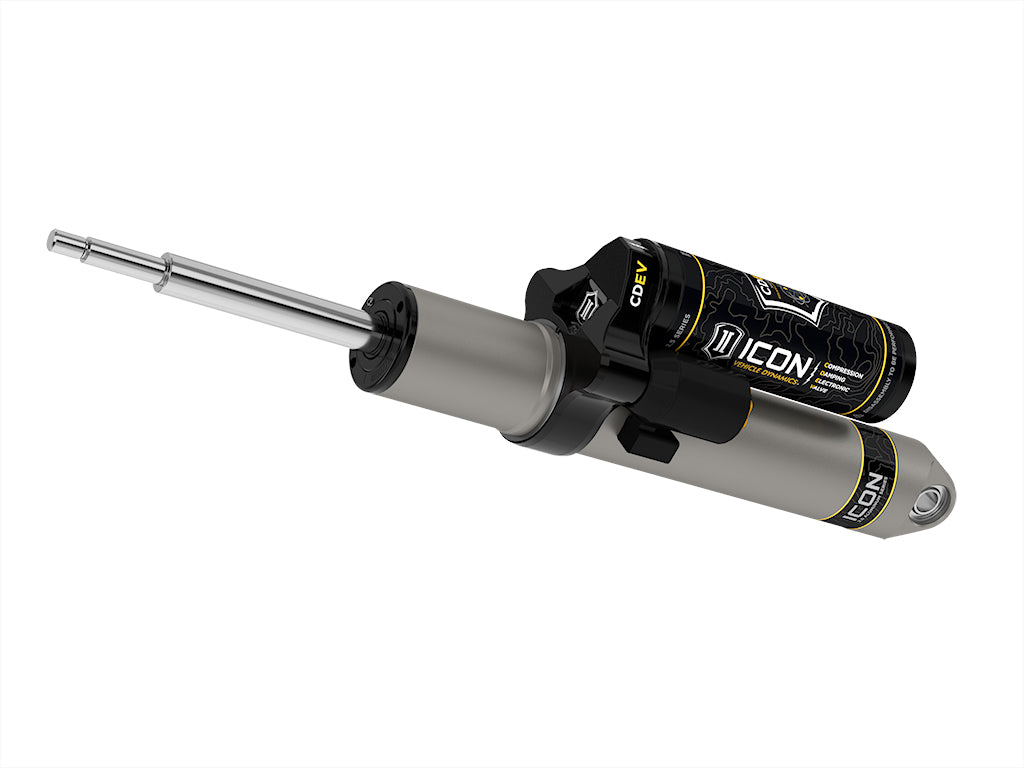

Icon Vehicle Dynamics 217707EP 2.5 Series Monotube Shock Absorber

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

• 6061 Aircraft Grade Aluminum CNC Machined Components
• 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
• One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
• Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
• Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
• PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
• Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
• One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
• ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
• Limited 1 Year Warranty
