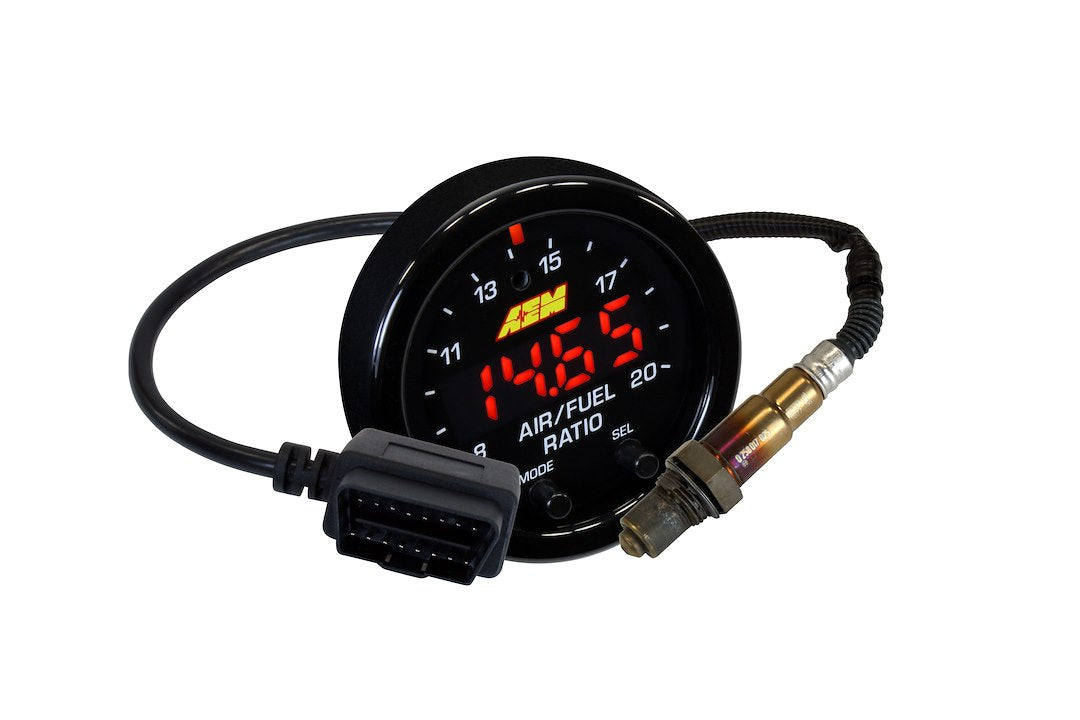

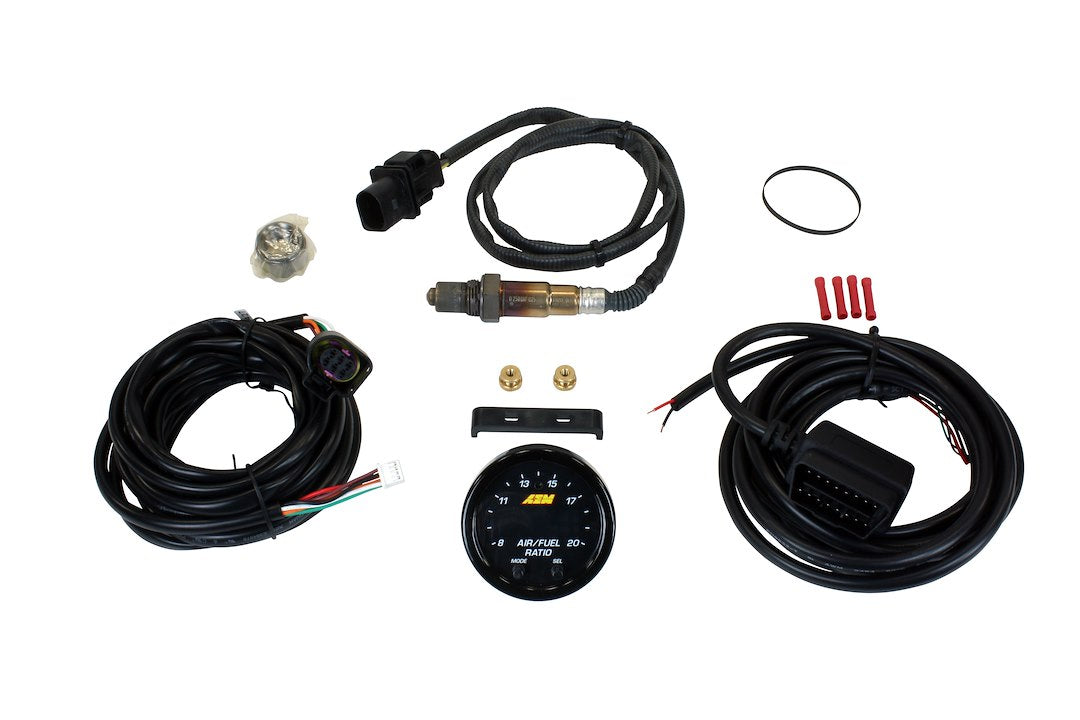

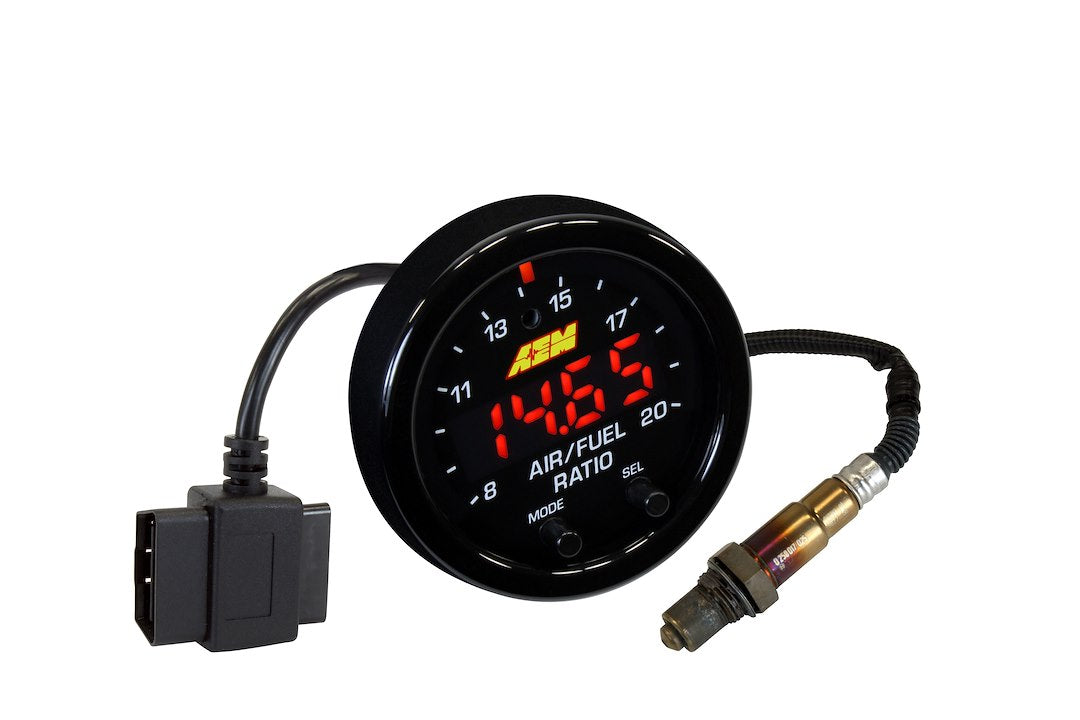

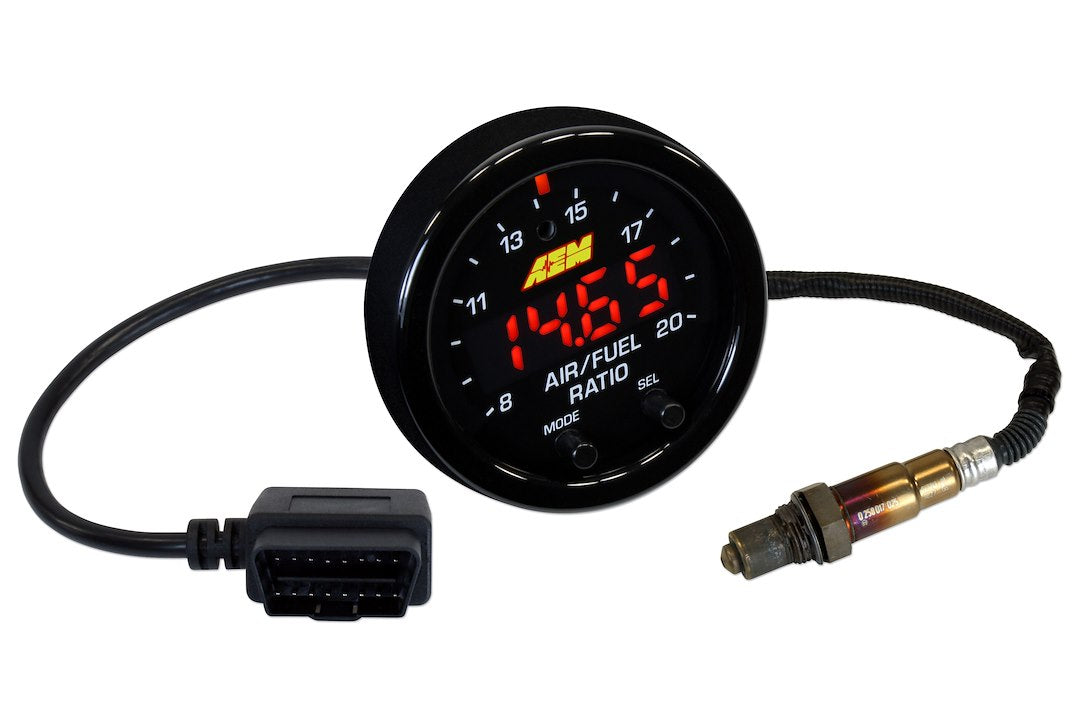

AEM Electronics X-Series OBDII Wideband AFR Controller Gauge (30-0334)

Adding an AFR gauge to the mix is the best way to monitor exactly what air to fuel ratio the engine has to work with at any given moment. This single piece of information is perhaps more definitive of performance than anything else. That doesn't mean you need to go overboard to get the data, though. This AEM X-Series OBDII Wideband AFR Controller Gauge makes use of what the vehicle already has to work with, meaning you don't need to do away with factory-installed sensors. The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through, which provides accurate AFR readings right through the factory ECU CAN-bus – ideal for tuners who are using piggyback tuning modules or open source software.

Thanks to AEM Electronics’ patented X-Digital wideband technology, X-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers. High-speed readings ensure no loss of signal fidelity and full transient response, making the controller able to identify the slightest fluctuations in AFR and output them in full value.

• Powerful, cost-effective tuning tool accurately monitors engine air/fuel ratio
• Patented X-Digital Wideband Technology ensures high-speed readings for precise tune

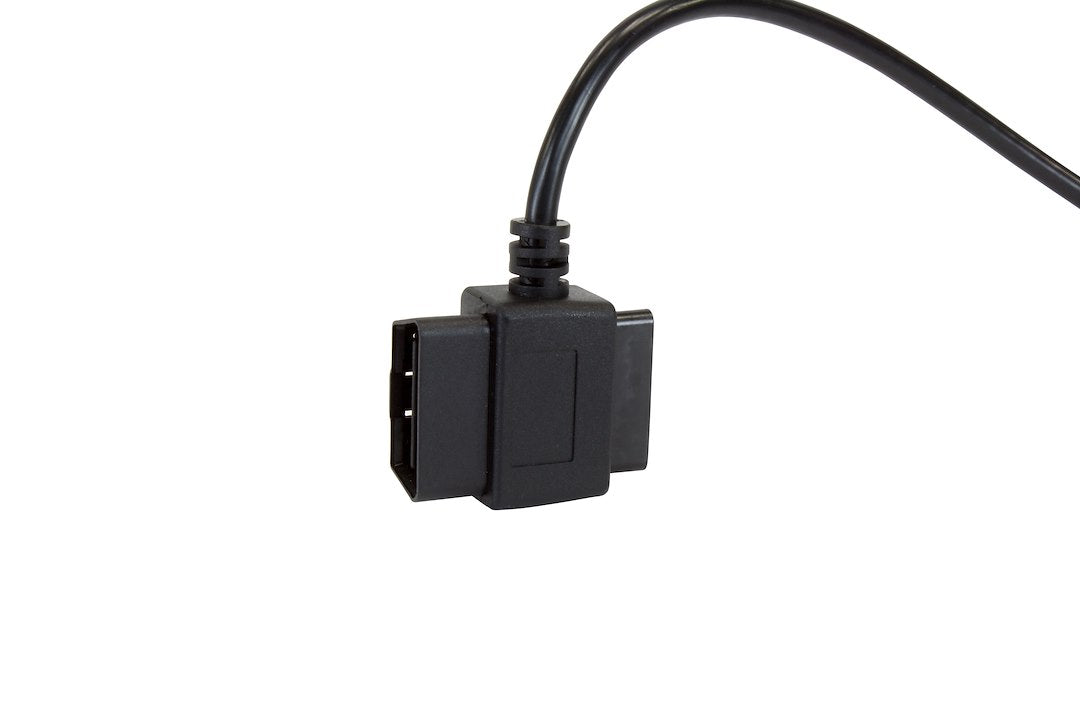

• OBDII pass-through provides AFR readings through the factory ECU CAN-bus
• Use the factory 02 calibration or free-air calibrate using buttons on faceplate
• Compatible with vehicle/system voltages up to 16V
• Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
• Can display AFR values in hundredths of %

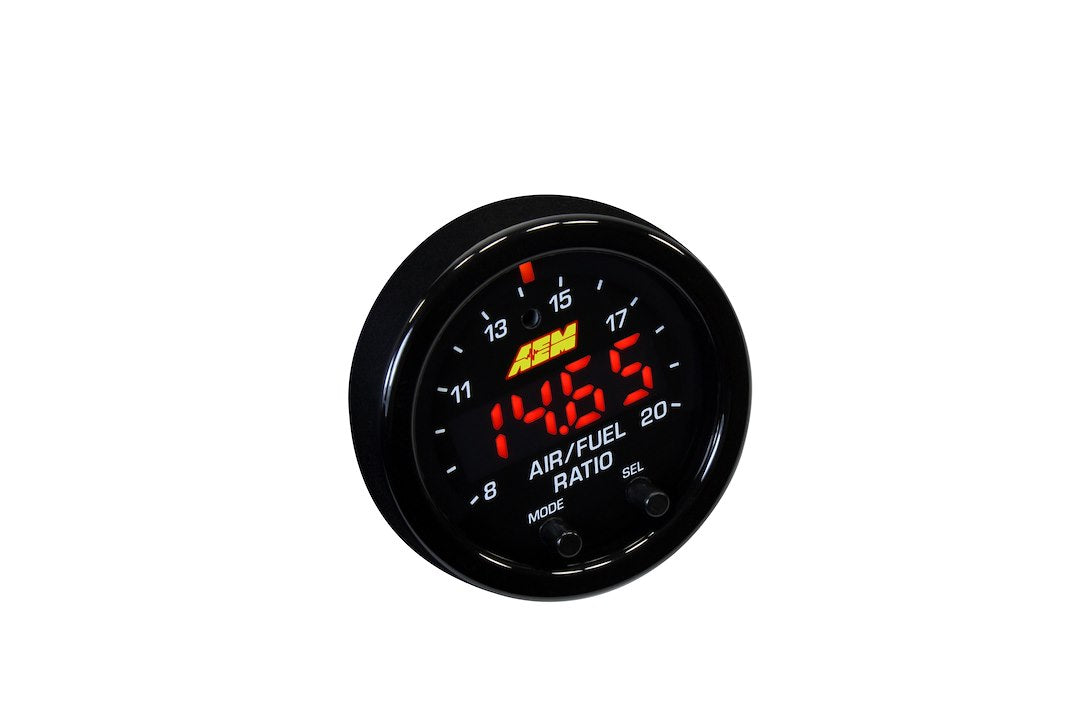

• 2-1/16" gauge diameter and slim 0.825" gauge depth
• Black bezel and black faceplate
• Auto-dimming sensor delivers ideal display brightness
• User configurable display for changing AFR values, Lambda and O2%, and 3- or 4-digit display
• Locking connectors
• Limited 1-year warranty
