You’re halfway through a cumbersome and technical hill climb when slick conditions suddenly turn your positive traction into a self-recovery scenario. Except when you reach for your winch remote and start to spool out the line, something doesn’t feel right. A quick investigation reveals it’s not the winch itself, but rather the line that’s causing a problem. Maybe it’s bunched up, snagged, or starting to fray—whatever the issue, it’s stopping your recovery cold.
Whether you’re running synthetic rope or steel cable, winch line issues can bring recovery to a standstill when you need it most. To help ensure your gear is ready when you need it, this guide explores the most common winch line problems you might encounter on the trail. We’ll walk you through how to work around these issues, how to help prevent them in the first place, and when it might be time to just retire your rope for good.
Common Winch Line Problems
When a winch line fails, it’s rarely a single dramatic moment. More often, it’s a slow-build issue caused by misuse, poor spooling, or plain bad luck. And whether you run steel cable or modern synthetic rope, every line eventually reaches the end of its life.
That’s why regular inspection and awareness are key to staying ahead of bigger problems. Here are some of the most common trail-side problems—and what to do when they happen.
1. Line Bunching on the Drum
Line bunching occurs when the winch line isn’t wound evenly on the drum, usually due to off-angle pulls or fast winching without tension. This is common with both steel cable and synthetic rope.
- Field Fix: If your line starts stacking or jamming, stop immediately. Reverse the winch a few feet, and then apply more even tension while carefully respooling. If you have a spotter, ask them to help guide the rope side to side across the drum.
- Long-Term Best Practice: Whenever you return from an off-road trip, unspool the line entirely and inspect it for damage. Then, using consistent tension (e.g., a small load or even the weight of your vehicle on flat ground), slowly respool it in neat, even layers.
- Pro Tip: Using a winch line damper or a towel mid-line can add tension during respool to help manage slack. Upgrade your winch setup with a quality fairlead to guide the winch rope smoothly onto the drum, ensuring it spools evenly without tangling. Use a roller style for steel cables, and a machined Hawse fairlead with synthetic winch lines.
2. Kinks in Steel Cable
Kinks occur when the winch cable is bent past its flexibility point, usually from improper usage, poor routing or handling, or letting it coil back on itself. Kinks weaken the steel threads’ structure significantly.
- Field Fix: There’s no true fix for a kinked steel cable in the field. Avoid using it under full load if you can. If you must continue, reduce tension and use additional recovery tools (like snatch blocks) to ease the strain.
- Long-Term Best Practice: Never allow slack cable to spring back loosely onto the drum. Keep tension consistent and always guide the cable by hand (with heavy gloves on) to maintain line integrity.
- Pro Tip: A kinked cable is a red flag. Even if it gets you home, start exploring winch line replacement options sooner than later.
3. Fraying or Heat Damage on Synthetic Rope
Synthetic rope is susceptible to abrasion, UV degradation, and heat from drum contact. Fraying can come from dragging over rocks or sand, while heat damage typically occurs when the drum gets too hot during extended use.

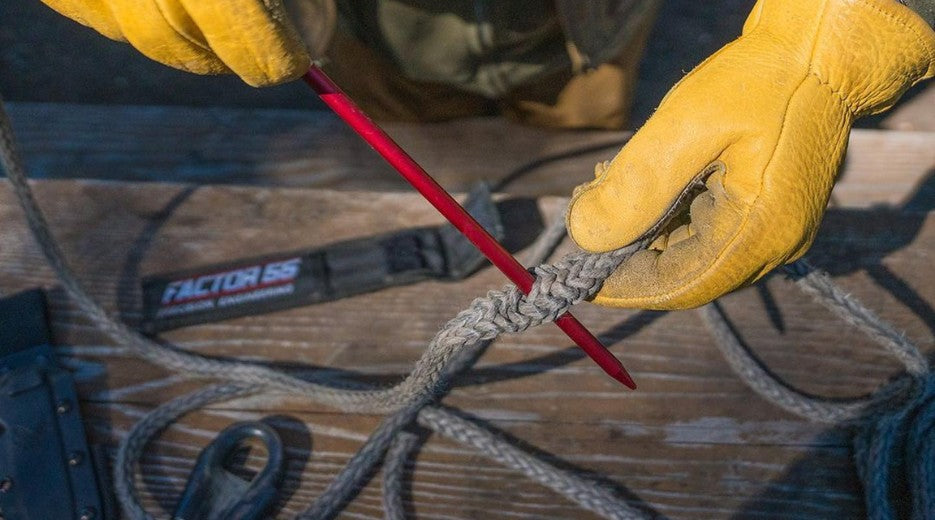

- Field Fix: If the damage is minor, trim the frayed area and use a heat gun or lighter to re-seal the fibers. If it fails completely, and you need to repair your synthetic winch rope in the field, you will need a special tool like the Factor 55 Fast FID. This synthetic rope splicing tool is designed for rapid repairs, turning a 30-minute job into a quick minutes-long project.
- Long-Term Best Practice: Synthetic rope needs routine inspection and cleaning. Wash with fresh water, dry fully, and store out of direct sunlight. Use a winch drum cover to reduce UV exposure and consider investing in a chafe guard to protect against trail damage .
- Pro Tip: Always check the rope’s core. If internal strands are broken or melted, it’s time to pick up a quality synthetic winch rope replacement.
4. Snags Or Embedded Debris
Dirt, sand, small pebbles, or embedded branches can cause both synthetic and steel winch lines to bind, catch, or wear unevenly. Over time, these contaminants grind against the fibers or strands, accelerating wear and potentially weakening your line’s strength.
- Field Fix: If a section of line feels stiff or “crunchy,” stop and inspect it closely. For synthetic rope, rinse the affected area with clean water and gently remove debris using a soft brush or cloth. For steel cable, look for burrs, sharp edges, or broken strands. Wrap any damaged spots with electrical or friction tape as a temporary measure to prevent further fraying until you can repair or replace the line. Reposition protective sleeves or sheaths over vulnerable areas to add extra shielding while out on the trail.
- Long-Term Best Practice: After each trip, thoroughly clean your winch line to remove dirt and grit. Synthetic ropes benefit from mild soap and water washes, while steel cables may need light lubrication to prevent rust. Regularly inspect your line for embedded debris or damage and replace it promptly if wear compromises safety.
- Pro Tip: Avoid dragging your winch line directly across sharp terrain. Use a tree saver strap or pulley block to minimize contact points.
5. Rope Slippage at the Drum Hookup
Over time, the anchor point where your rope or cable connects to the winch drum can loosen, especially on older setups or after heavy use. This area takes the brunt of initial load tension and is often overlooked during routine inspections.
- Field Fix: If you suspect slippage, stop pulling immediately. Spool out to the anchor point and inspect the attachment. For synthetic ropes, this might be a spliced loop—check for separation or fraying. For steel cables, examine the bolt, wedge, or set screw; they may have backed out or become damaged under stress.
- Long-Term Best Practice: Replace any worn or suspect anchor hardware. For synthetic setups, consider upgrading to a thimble-style or safety thimble connection to reduce wear and improve load distribution.
- Pro-Tip: Don’t overlook the drum itself. While it’s less likely to fail than the rope or anchor hardware, winch drums are still considered wear items—and if left unchecked, they can compromise line seating and anchor security over time.
Tools To Carry in Your Winch Repair Kit
Trail repairs require more than just good luck. While your basic recovery kit probably includes shackles and straps, consider adding essential winch accessories to your kit, and these other items to help troubleshoot winch line issues on the fly.
Must-Haves
- Heavy-duty gloves (essential for steel cable)
- Line dampener or winch blanket
- Electrical and friction tape
- Sharp utility knife or trauma shears
- Soft brush (for synthetic rope cleaning)
- Small LED light for nighttime repairs
- Splicing needle or Factor 55 FID (for synthetic rope users)
- Flathead screwdriver (to adjust or remove anchor bolts)
Nice-to-Haves
- Spare synthetic rope or cable (pre-measured for your winch)
- Portable air compressor (to blow out sand or grit)
- Winch line extension
- Pulley block/snatch block
- Protective sleeves for rope or cable
Having the right recovery gear on board can make the difference between a delayed day and a ruined trip. Always plan for the worst-case scenario, especially in remote terrain.
When To Replace the Line Altogether
A winch line that’s been damaged might get you out once or twice—but it shouldn’t become a permanent part of your rig.
Here are signs it's time to stop stalling and just replace your winch line:
- Steel cable with visible kinks, birdcaging, or broken strands
- Synthetic rope with melted fibers, deep cuts, or severe abrasion
- Excessive stretch or flattening of the line
- Anchor failure or frayed drum-end connections
- Frequent unspooling and jamming under moderate loads
Trying to stretch out the lifespan of a worn winch line can put your vehicle and your safety at risk. Think of it like your vehicle’s tires or brakes—when it’s worn out, only replacement will do.
The Bottom Line
Being prepared for trail-side winch line problems means understanding how your equipment fails and knowing how to fix or work around it in real-world conditions. Whether you’re running synthetic rope for weight savings and safety, or steel cable for durability and heat resistance, the key is awareness and proactive maintenance.
You don’t need to carry a full garage with you, but the right tools and a little knowledge go a long way. If your winch line is showing signs of wear—or worse, if it’s already failed once, now is the time to take action.
