Maretron Ssc300-01 Compass

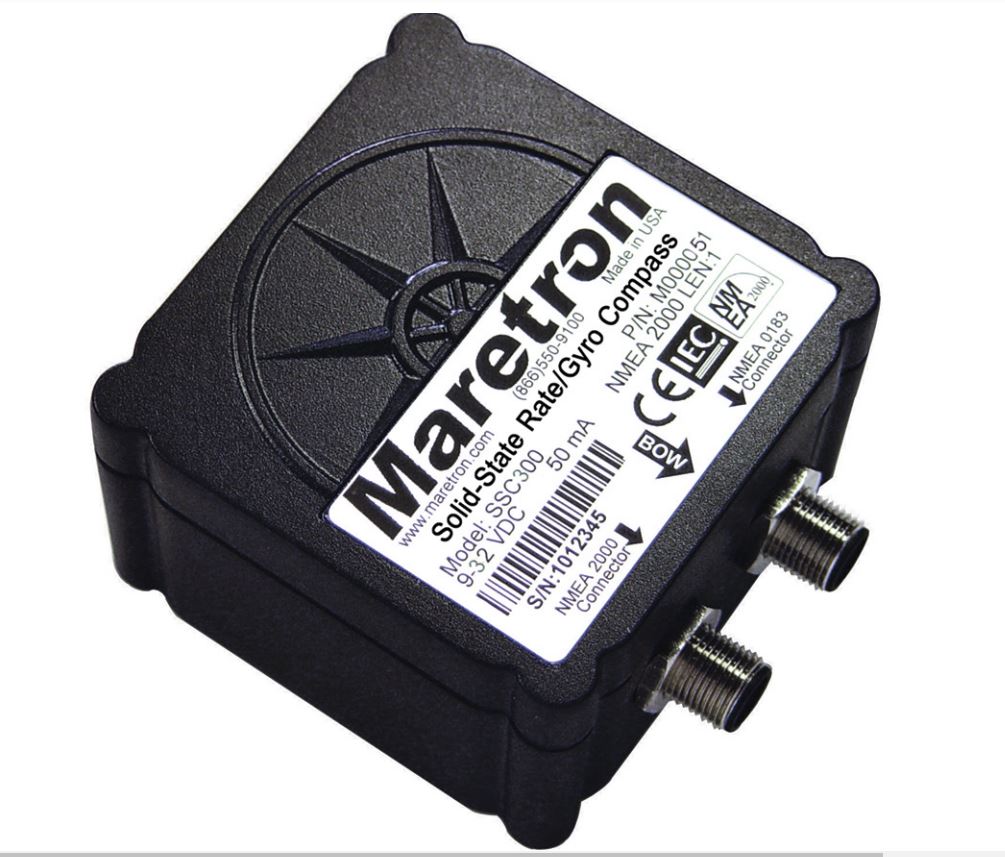

Maretron SSC300 Rate Gyro Compass Maretron's SSC300 is a solid state, rate gyro electronic compass that provides better than 1° heading accuracy through ±45° of roll and pitch angle, and better than 1° roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined rate gyro is used by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot applications. Maretron's SSC300 is certified to the NMEA 2000® network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000® network and/or NMEA 0183 listeners (optional cable required) to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView® vessel monitoring system, or Maretron's DSM150 / DSM250 color graphics displays. The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.

• Heading
• Pitch
• Roll
• Rate of turn
