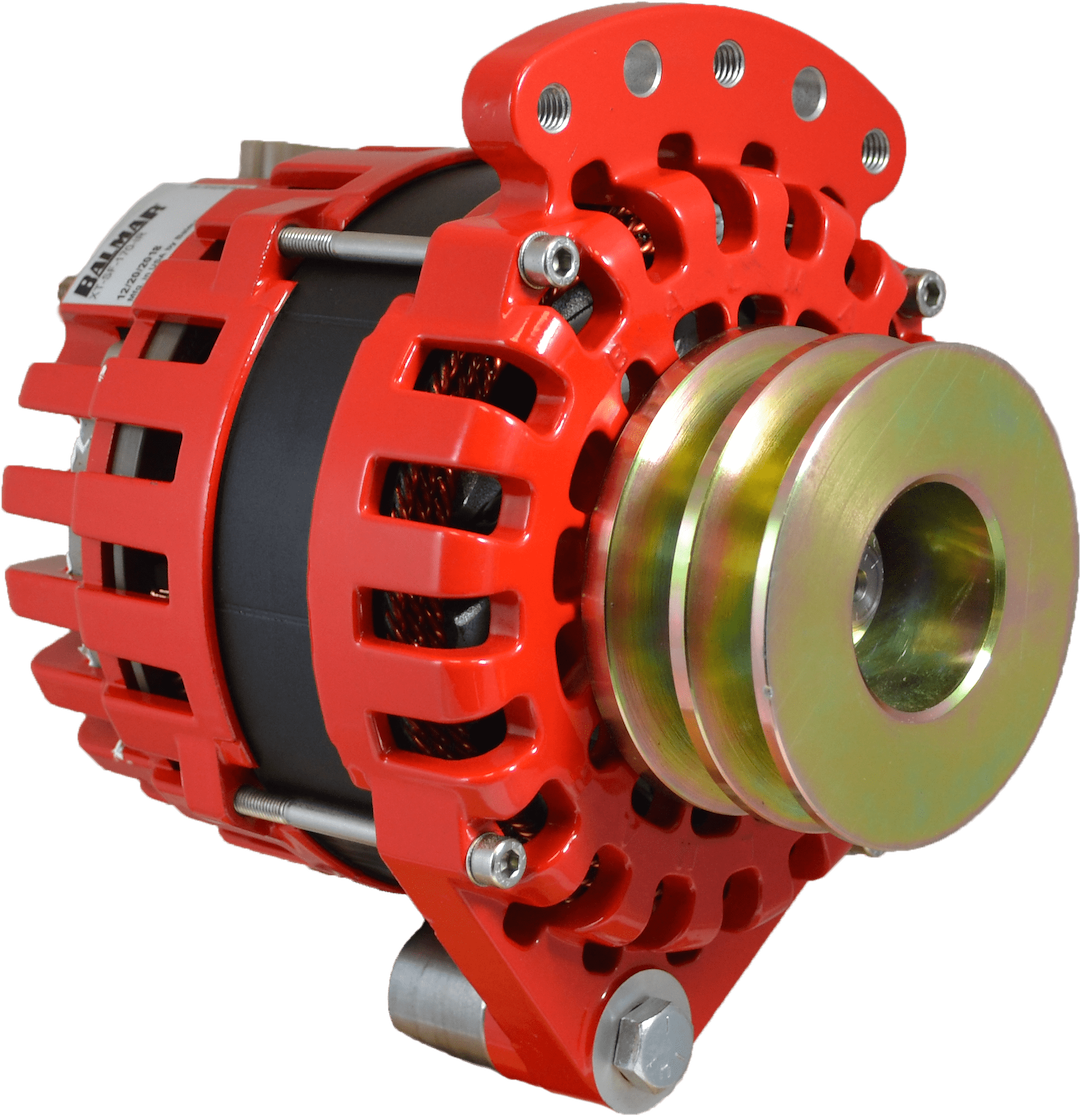

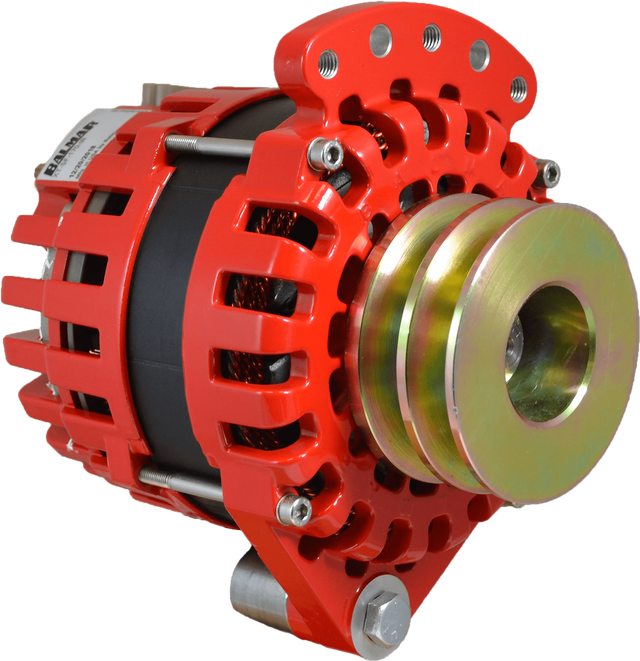

Balmar Xt-Sf-170-Dv Alternator/ Generator

The New XT-Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package. The New XT-Series Alternator family features a state-of-the-art, braided stator wire design to generate exceptional output in the smallest possible area. The XT-Series produces slightly more power than our previous AT-Series 165 Ampere design and operates 5o-10oC cooler. In addition, we’ve added Balmar’s Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters. Available XT-Series mounting styles have also expanded to features the “Vortec” 9Si design found on many GM gasoline engines. The AT-Series 220 Ampere Alternator family features a hairpin-wound stator design which uses densely wound square copper wire to generate up to 220 Ampere at 3,000 engine RPM. Hairpin-wound stators feature 96 slots – compared to 36 slots in a traditional S-wound stator – allowing the hairpin-wound stator to develop superior electromagnetic energy and efficiency to other traditional stator designs.

• 170 Ampere Or 250 Ampere In A Small Case Package
• Up To 180 Ampere At Idle Speeds
• Patented Smart Ready® Technology
• Dual Fan Cooling, High Airflow Frame
• Ideal For Lithium Battery Banks
• USCG Title 33, ISO 8846 And SAE J1171 Certified
• Limited 2 Year Warranty
