Blue Sea 7748-Bss Fuse Block

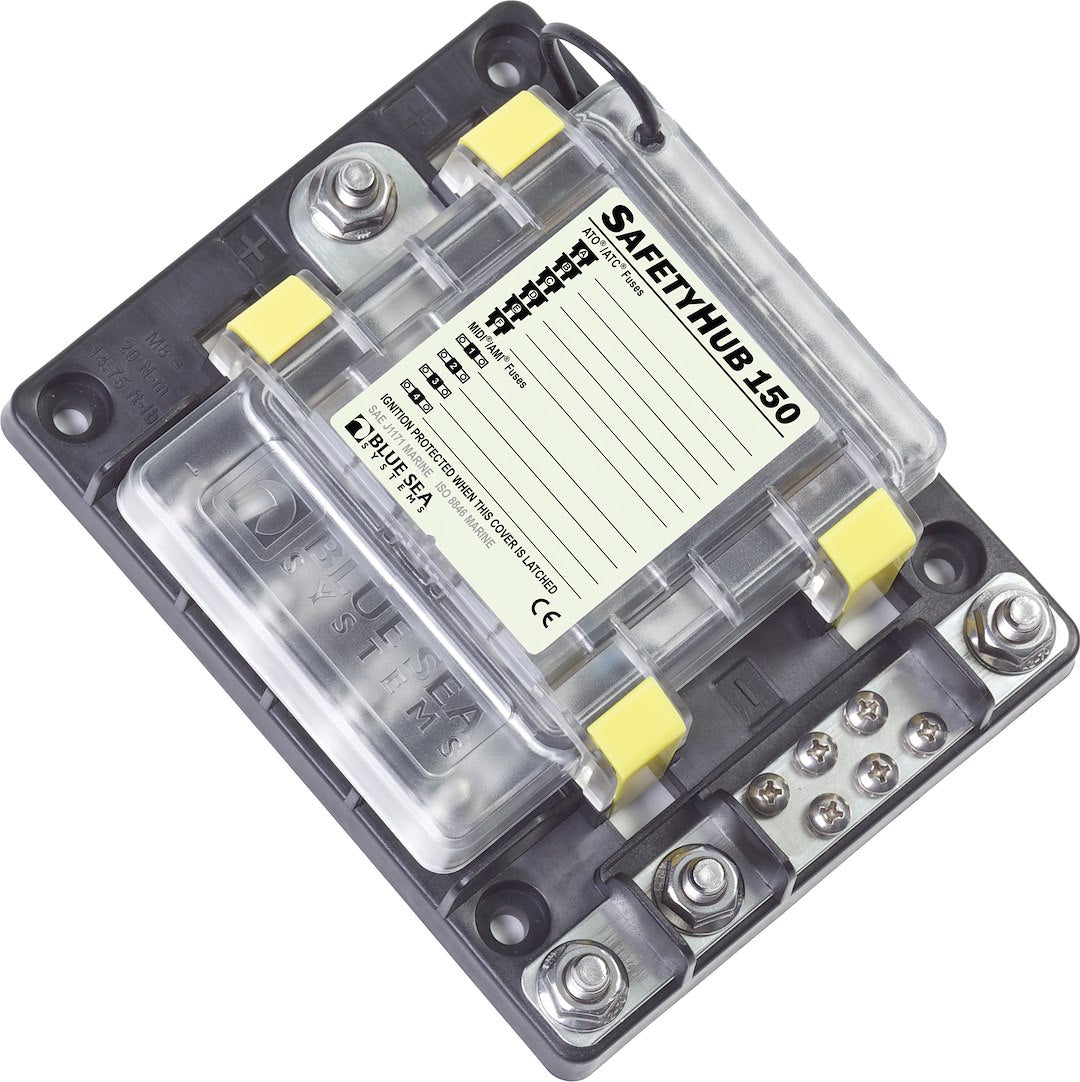

The SafetyHub 150 consolidates ignition protected, high amperage and 24 Hour circuit protection into one place near the battery while also providing circuit protection for the 360 Panel feed wire. The 360 Panel provides circuit protection for all medium amperage loads and the ST Blade Fuse Block protects the electronics, as these devices are switched on the device. This example minimizes panel space and consolidates circuit protection to only three places on the boat and achieves a critical safety advantage by ensuring all high amperage cables are protected.

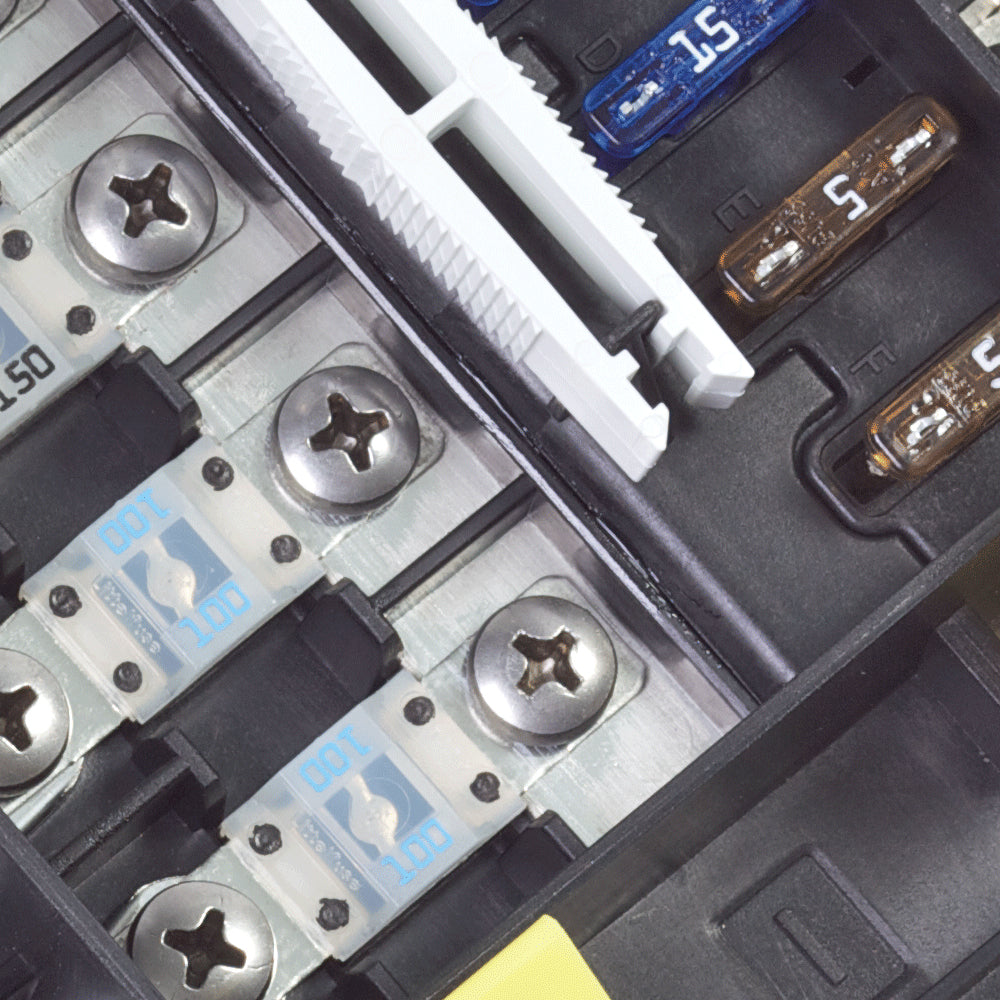

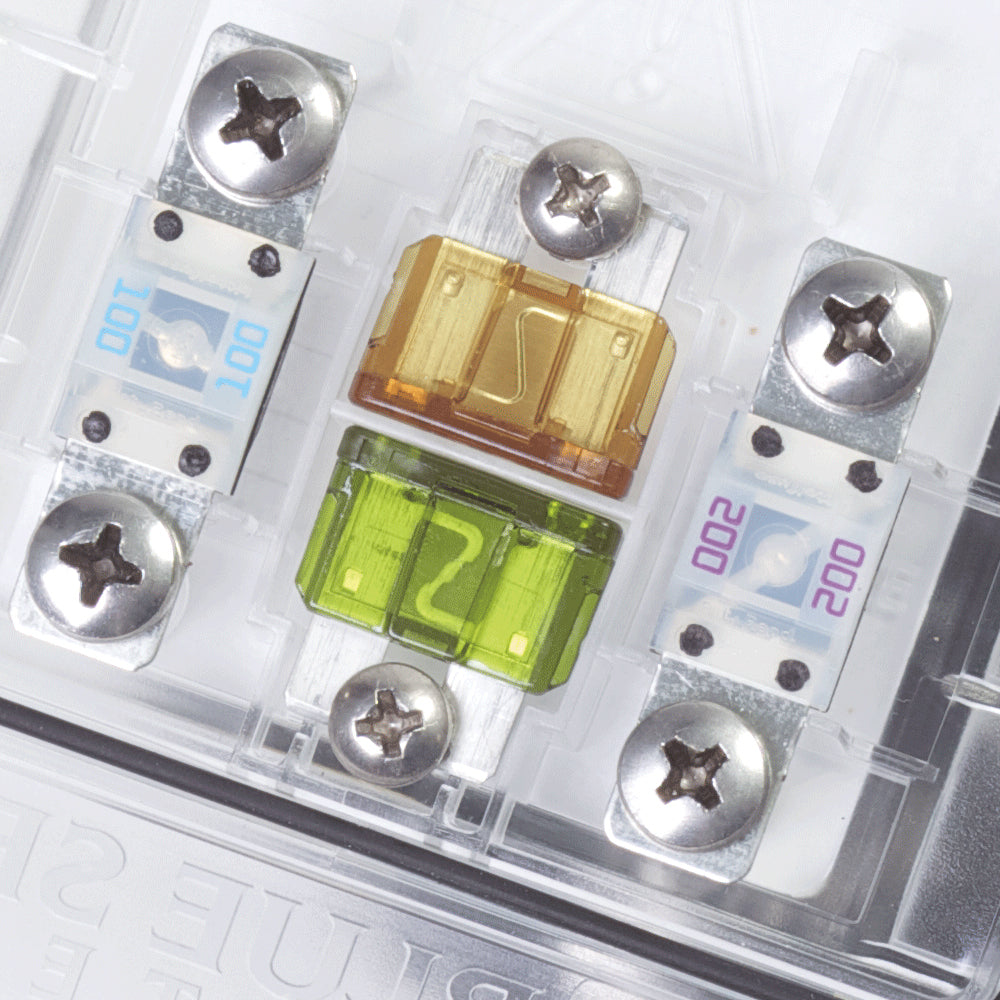

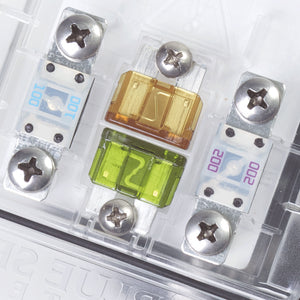

• Accepts Four AMI® Or MIDI® Fuses For High-Amp Circuits Up To 200 Ampere
• Sealed Cover Protects Fuses From The Harsh Marine Environment And Satisfies ABYC Or USCG Insulation Requirements

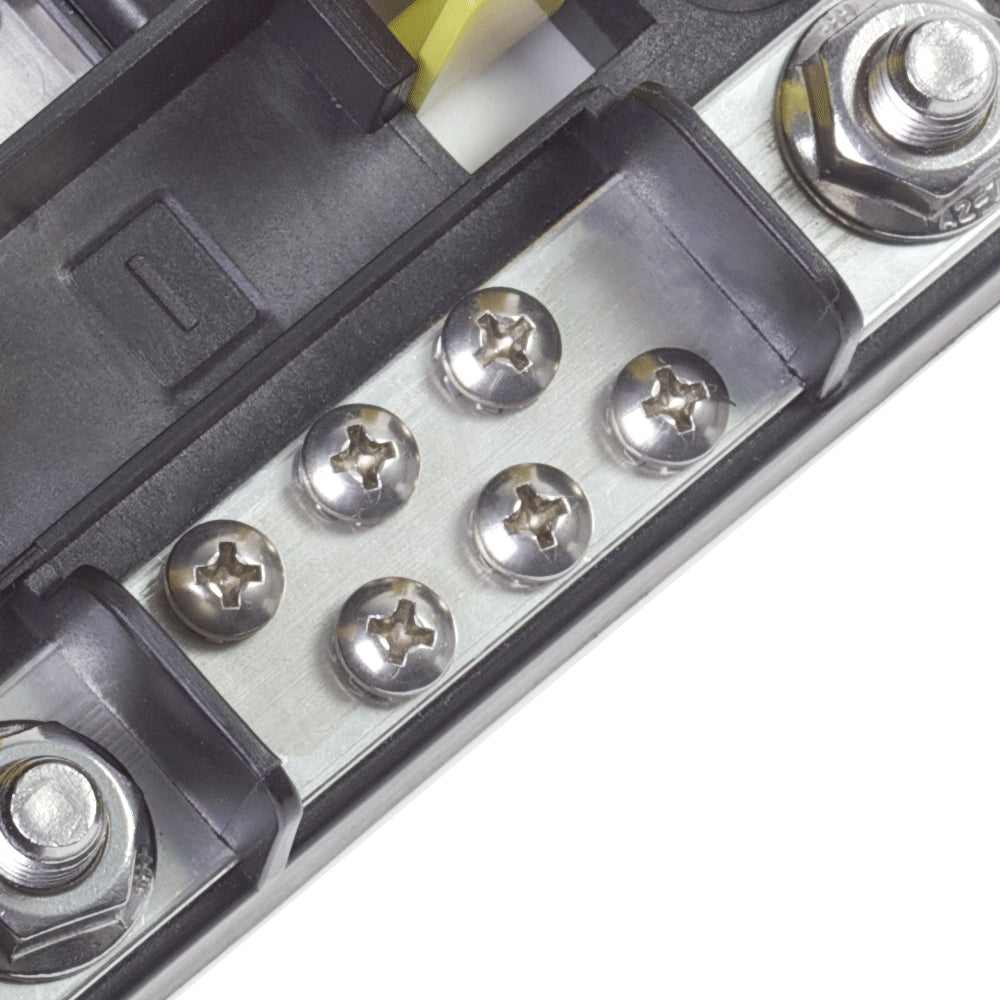

• Negative Bus Provides Common Location For Negative Connection
• Circuit Identification Label With Write-On Capability

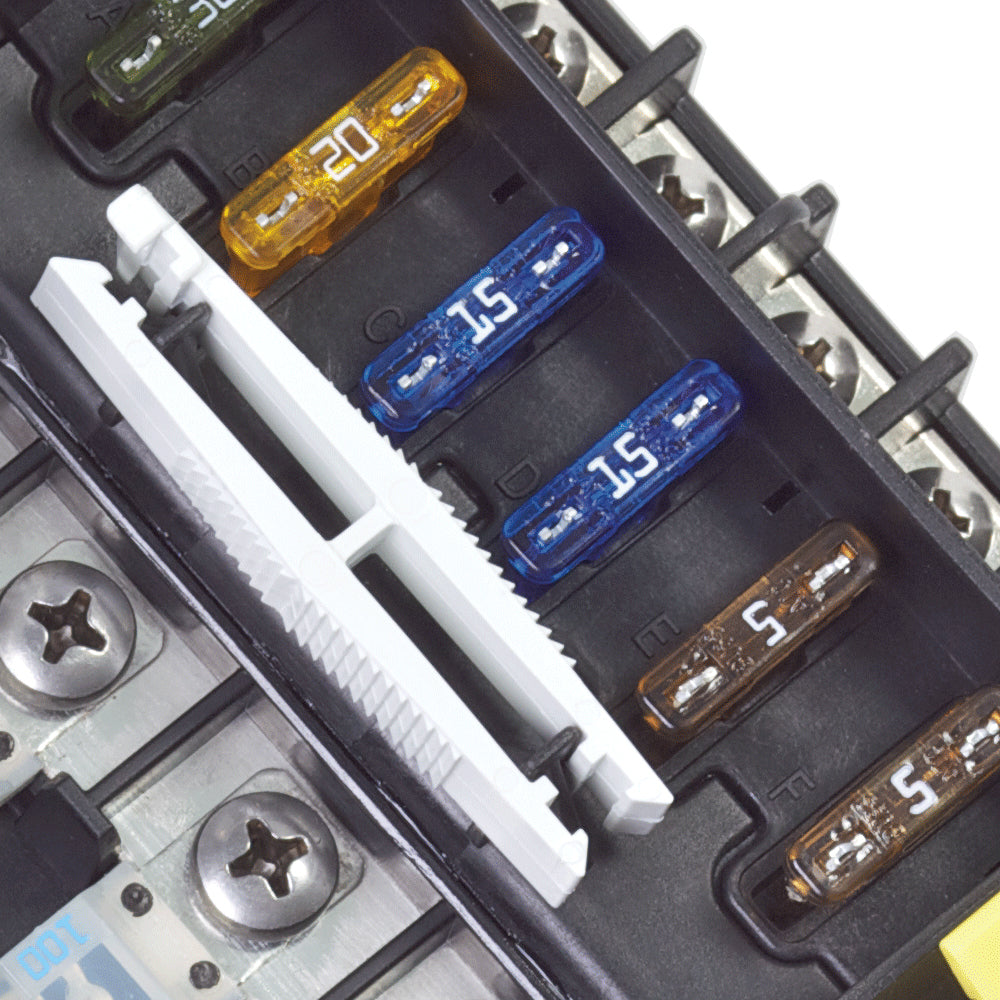

• Fuse Puller Easily Removes ATO® Or ATC® Fuses

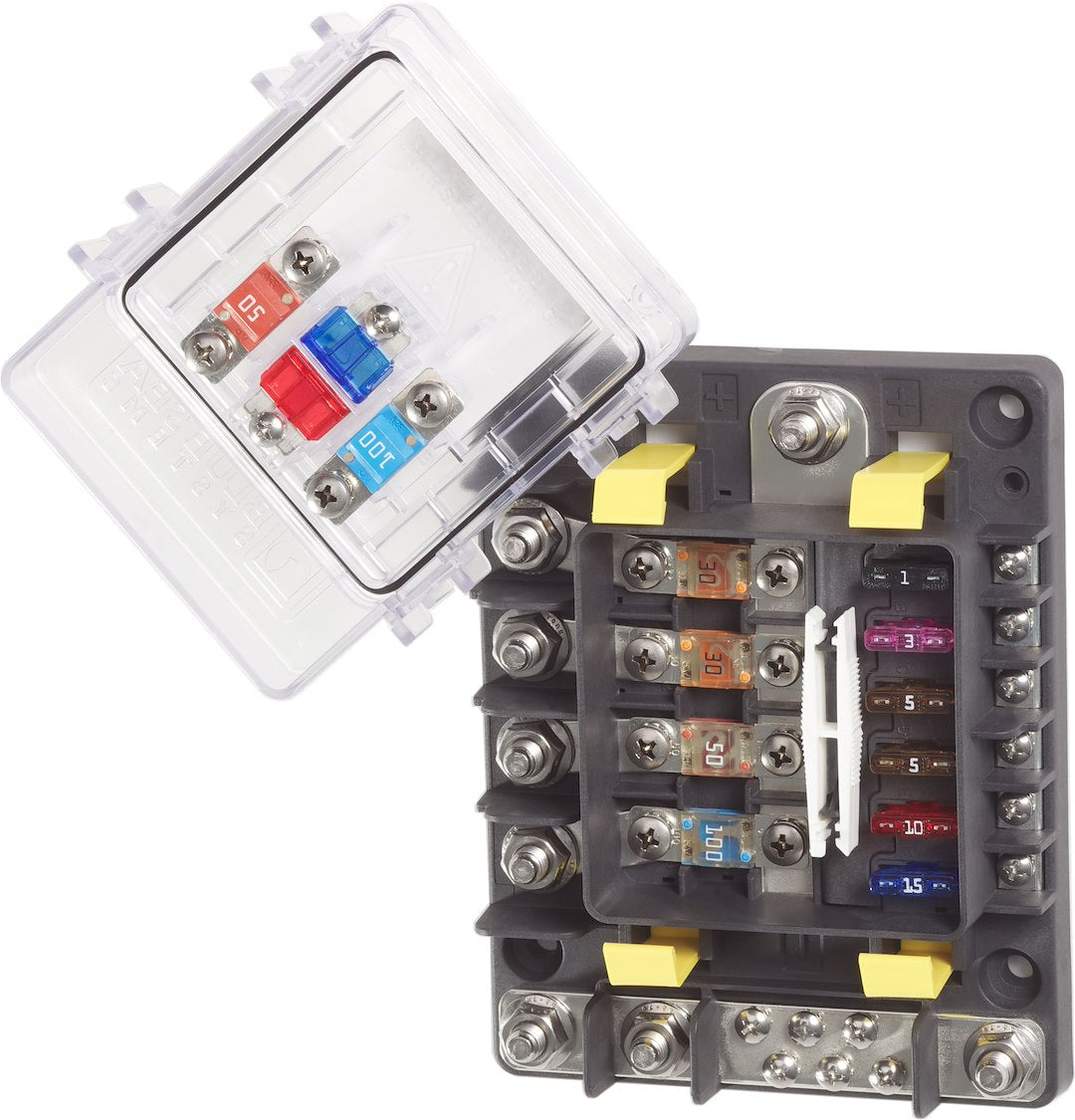

• Cover Provides Storage Space For Two Spare ATO® Or ATC® And Two Spare AMI® Or MIDI® Fuses And Mounting Screws
• One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
• Limited 3 Year Warranty
