Wilwood Brakes 140-10996-Dr Brake Conversion Kit
Wilwood Brakes 140-10996-Dr Brake Conversion Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

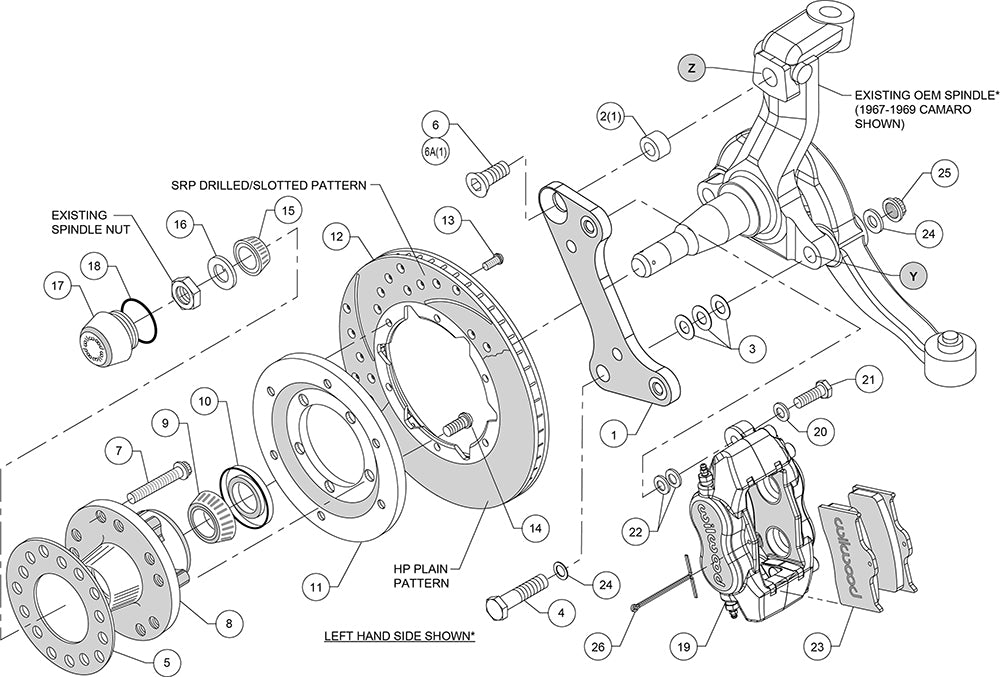

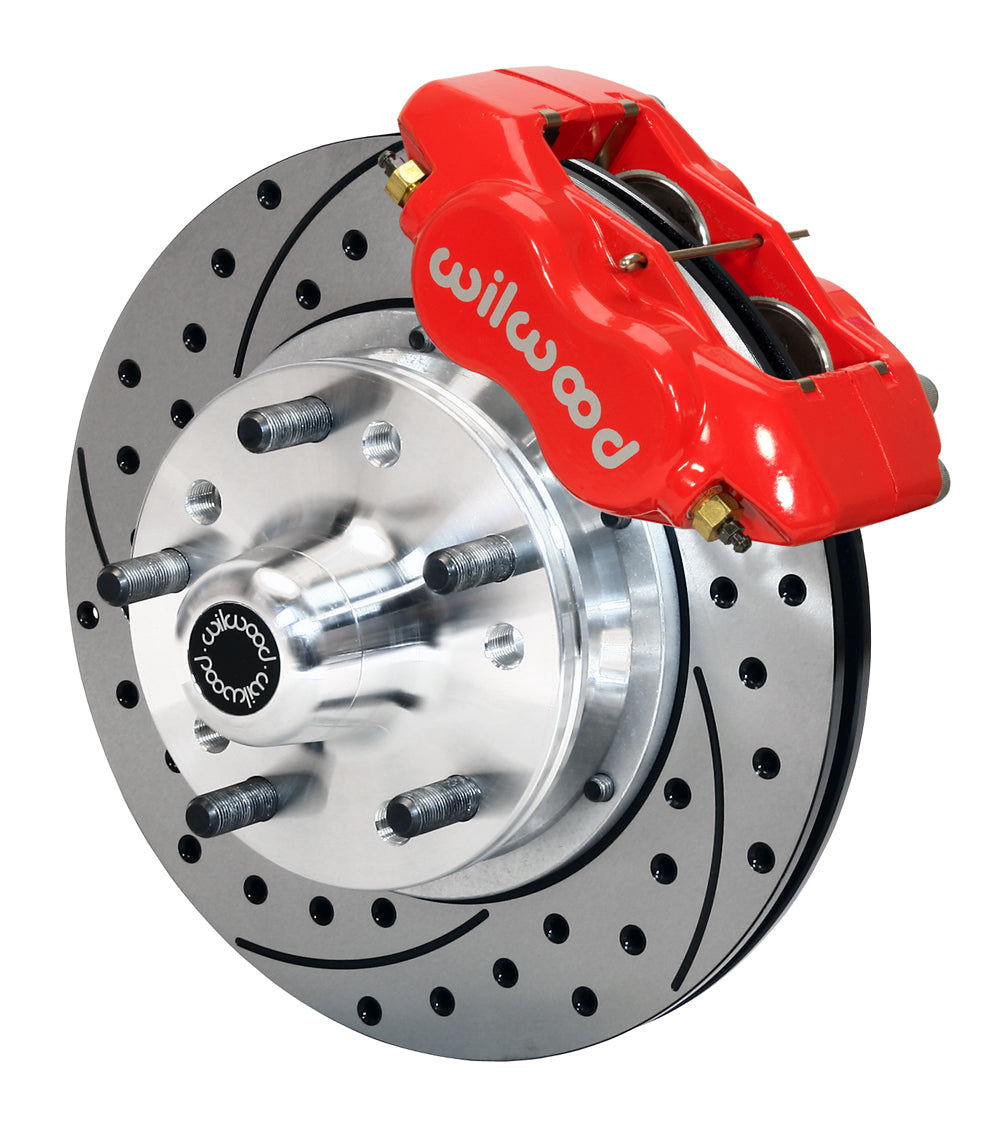

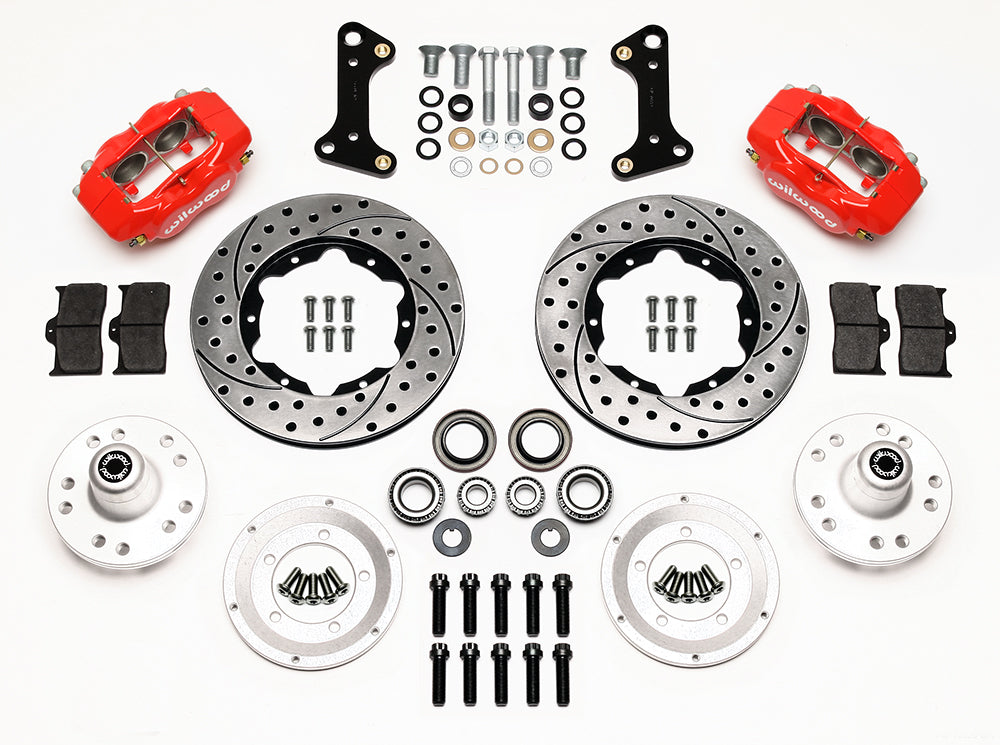

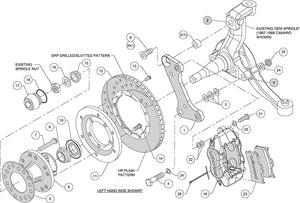

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for GM 1967 to 1969 F-Body and 1964 to 1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc and Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11 Inch rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track with by only +0.19 Inch from original drum brake position, and -0.31 Inch from the original disc brake assemblies. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15 Inch wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware.
- Offer Disc Brake Upgrade Solutions For Both OEM Disc And Drum Spindles
- This New Kit Widens The Track With By Only +0.19 Inch From Original Drum Brake Position, And -0.31 Inch From The Original Disc Brake Assemblies
- These Versatile Kits Are Easily Optioned To Suit The Braking Requirements And Style Preferences For A Daily Driver, Serious Competition, Or The Most Discriminating Show Enthusiast
- Can Be Used With Either Manual Or Power Boost Master Cylinders
- No Supplier Warranty
[This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.go]
Product Specifications
Product Specifications
| Recommended Use | Racing/ Street |
| Disc Brake Pad Material | BP-10 Metallic |
| Disc Brake Rotor Bolt Circle | 5 X 4-1/2 Inch |
| Disc Brake Caliper Color | Red |
| Disc Brake Caliper Finish | Powder Coated |
| Disc Brake Caliper Material | Aluminum |
| Disc Brake Caliper Number of Pistons | 4 |
| Disc Brake Rotor Design | Drilled And Slotted |
| Disc Type | Two-Piece |
| Disc Brake Pad Overall Length | 100.6 Millimeter |
| Disc Brake Pad Overall Width | 60.5 Millimeter |
| Disc Brake Pad Overall Thickness | 12.4 Millimeter |
| Disc Brake Caliper Condition | New |
| Disc Brake Rotor Finish | Electro Coated |
| Disc Brake Rotor Material | Iron |
| Disc Brake Rotor Outer Diameter (MM) | 279.4 Millimeter |
| Disc Brake Rotor Outer Diameter (IN) | 11 Inch |
| Nominal Thickness (MM) | 20.57 Millimeter |
| Nominal Thickness (IN) | 0.81 Inch |
| Includes Bracket | Yes |
| Includes Hardware | Yes |
| Includes Shims | Yes |
| Includes Brake Lines | No |
| Minimum Wheel Diameter | 14 Inch |
