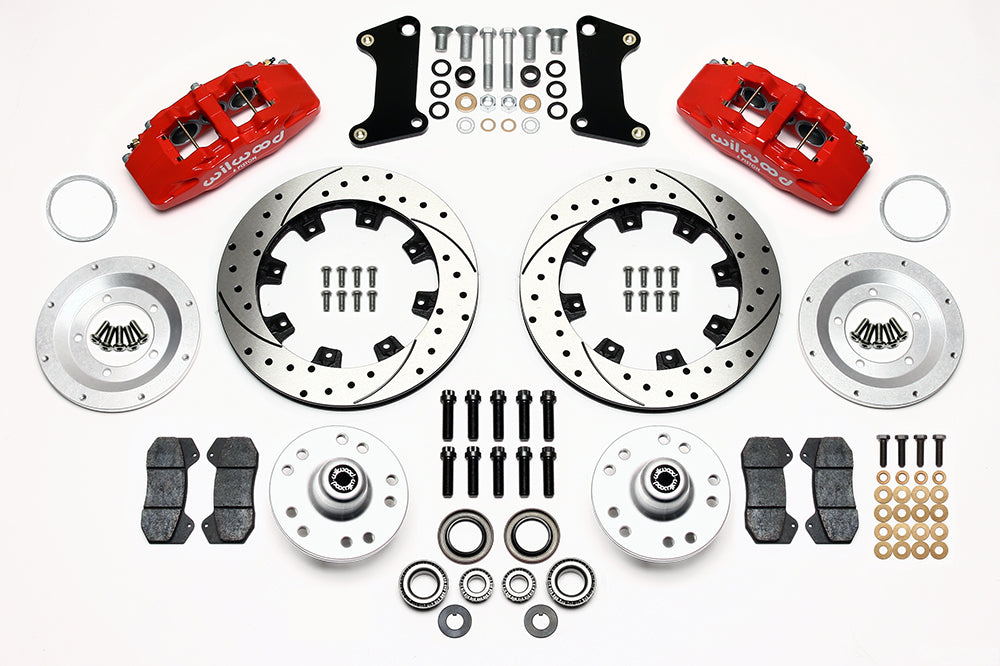

Wilwood Brakes 140-10510-Dr Brake Conversion Kit
Wilwood Brakes 140-10510-Dr Brake Conversion Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

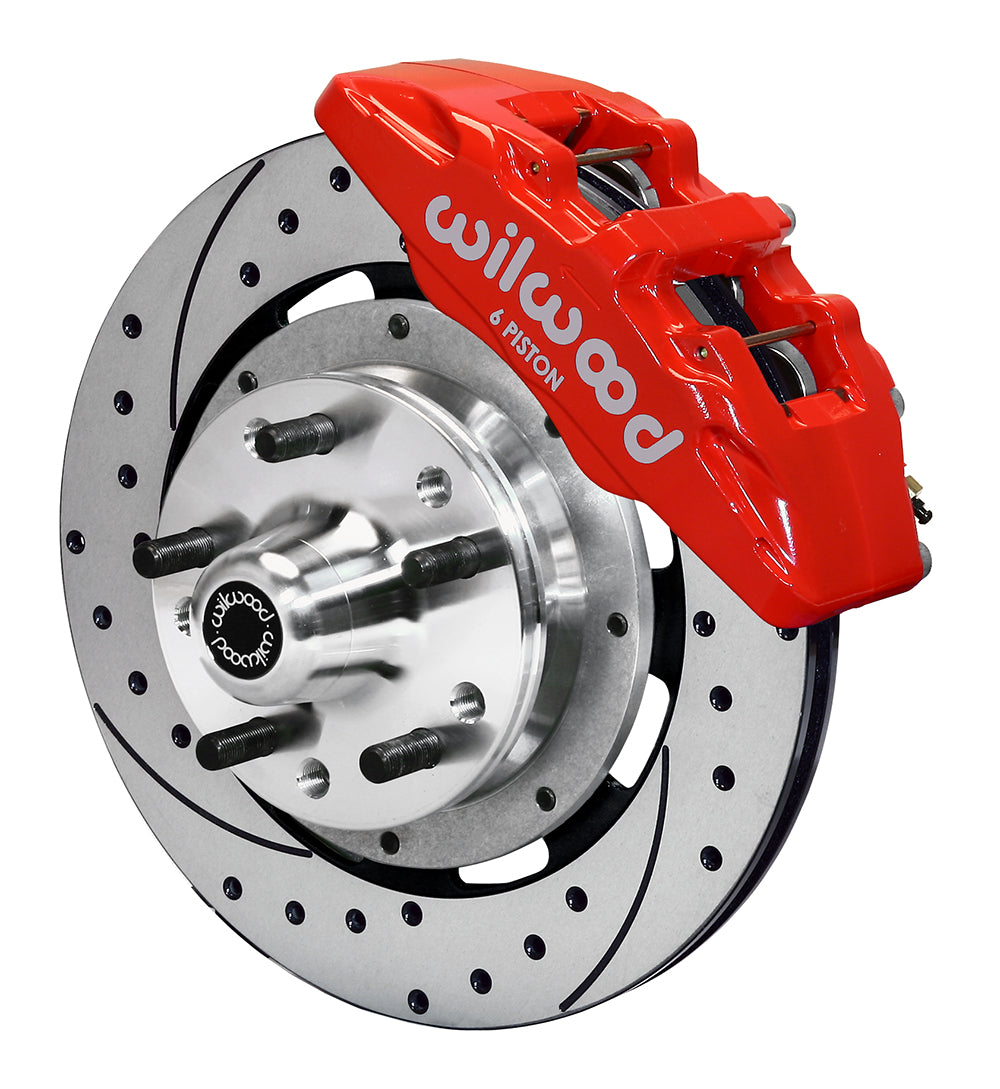

DynaPro 6 forged billet calipers are combined with 12.19 Inch diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
- Combined With 12.19 Inch Diameter Rotors For This Group Of Traditional Non-ABS Spindles On American Muscle Cars And Vintage Rods
- Enhanced Brake Capacity And Pad Performance Of The Six Piston Calipers Provide An Intermediate Level Alternative To The Bigger Six Piston Kits
- A Full Range Of Caliper Finishes And Rotor Designs Enable The Builder To Personalize The Style And Optimize The Brake Performance For Each Individual Application
- No Supplier Warranty
[This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.go]
Product Specifications
Product Specifications
| Recommended Use | Racing/ Street |
| Disc Brake Pad Material | BP-10 Metallic |
| Disc Brake Rotor Bolt Circle | 5 X 4-1/2 Inch |
| Disc Brake Caliper Color | Red |
| Disc Brake Caliper Finish | Powder Coated |
| Disc Brake Caliper Material | Aluminum |
| Disc Brake Caliper Number of Pistons | 6 |
| Disc Brake Rotor Design | Drilled And Slotted |
| Disc Type | 2-Piece |
| Disc Brake Pad Overall Length | 123.4 Millimeter |
| Disc Brake Pad Overall Width | 59.9 Millimeter |
| Disc Brake Pad Overall Thickness | 12.4 Millimeter |
| Disc Brake Caliper Condition | New |
| Disc Brake Rotor Finish | Electro Coated |
| Disc Brake Rotor Material | Iron |
| Disc Brake Rotor Outer Diameter (MM) | 309.63 Millimeter |
| Disc Brake Rotor Outer Diameter (IN) | 12.19 Inch |
| Nominal Thickness (MM) | 20.57 Millimeter |
| Nominal Thickness (IN) | 0.81 Inch |
| Includes Bracket | Yes |
| Includes Hardware | Yes |
| Includes Shims | Yes |
| Includes Brake Lines | No |
| Minimum Wheel Diameter | 15 Inch |
