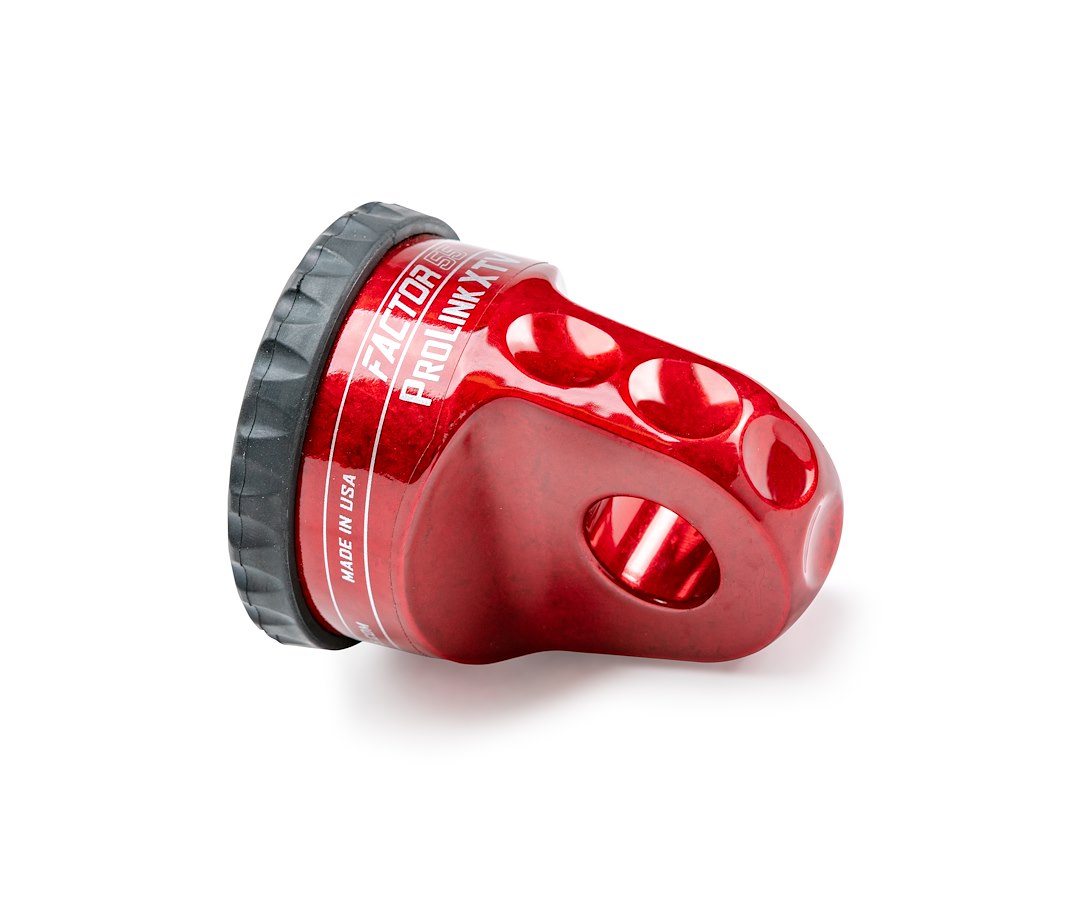

Factor 55 ProLink XTV Red ( 00110-01 )

The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 Inch. The cable eye is retained in the ProLink XTV by a 7/16 Inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips. The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 and 5/8 Inch shackles. The ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The ProLink has a maximum load rating of 6000 Pounds and an ultimate failure of 22,000 Pounds.

• Made From Billet Aluminum Construction These Come With An Upgraded Titanium Shear Pin
• EPDM Rubber Guard Protects Alloy Fairleads
• All Factor 55 Products Are Designed In House Using The Latest 3D CAD Software And Optimized Using Cosmos FEA (Finite Element Analysis)
• Also Perform A Destructive Test On Each Design With The Assistance Of A Test Facility Equipped With Test Measurement And Data Recording Equipment
• Factor 55 Wants To Make Sure We Are Producing The Highest Quality, Best Value Products For Our Customers
• Limited 1 Year Warranty
