Aem Electronics 30-0300ns Gauge Air/ Fuel Ratio

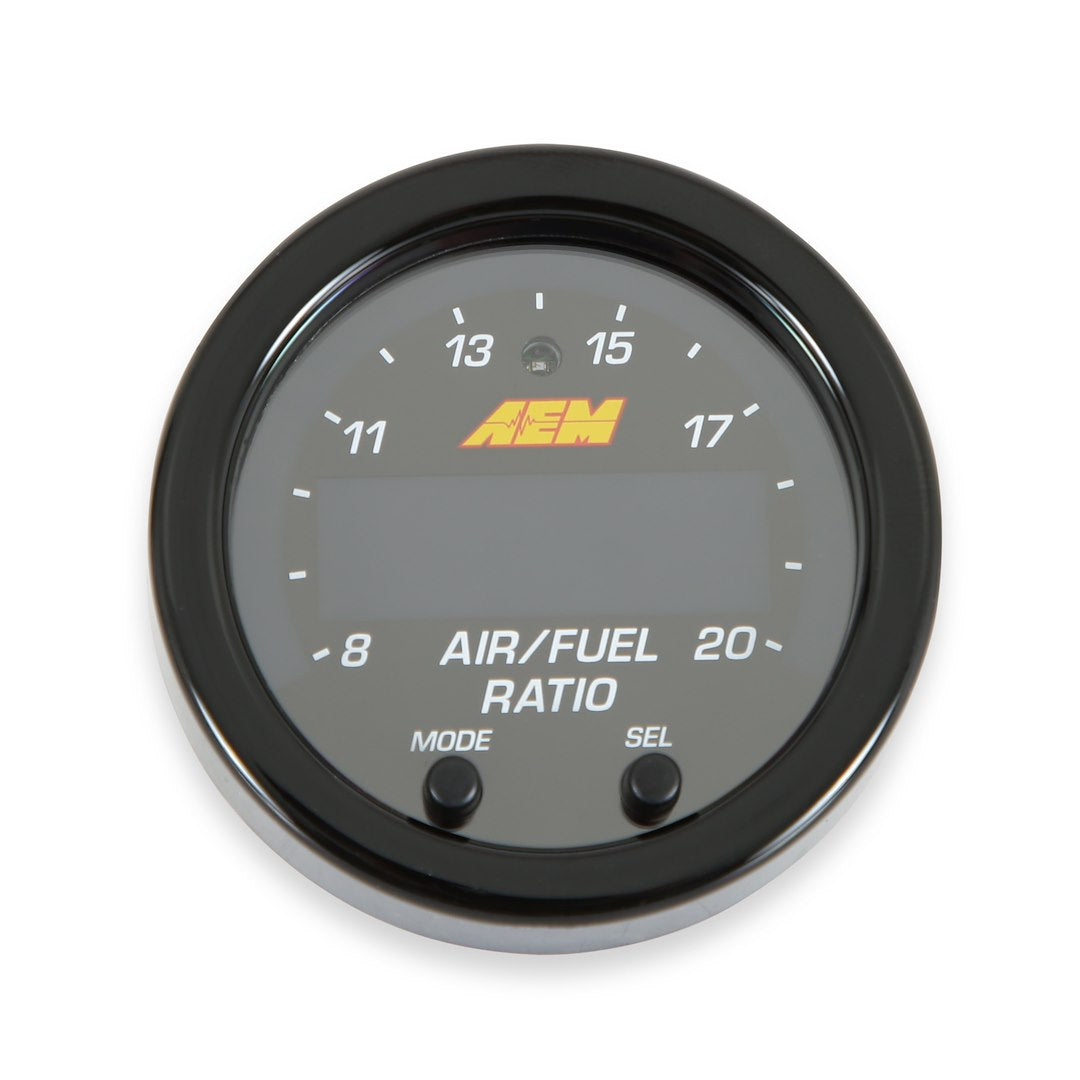

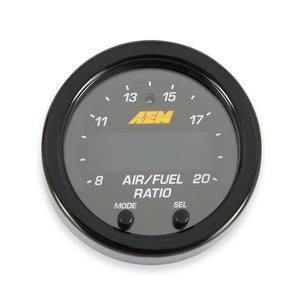

AEM's X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patented 100 Percent Digital technology (Patent 9,575,030) that makes them the fastest responding wideband air/fuel ratio controllers in independent testing. The X-Series Wideband UEGO AFR Sensor Controller Gauge measures 2 1/16th-Inch (52 Millimeter) in diameter and features a modern, visually striking faceplate and new seven-segment center display that is 87 Percent larger than the 30-4110 AEM Wideband Gauge's center display. This creates the perception of a larger overall gauge, but in a common 52 Millimeter size for easy mounting. Its slim depth (less than one inch overall) and ultra-slim cup depth of .200-Inch dramatically increases its application base and potential mounting locations. The AEM Wideband X-Series UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change AFR values for different fuels, Lambda or O2 Percent, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are provided, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available. An Auto Dimming feature is provided. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge's durability.

• X-Series Wideband UEGO AFR Controller Gauge Were Fastest Responding Wideband Air/Fuel Ratio Controllers In An Independent Test Versus 17 Competitors Wideband AFR Controllers
• Patented X-Digital Wideband Technology
• AEM Co-Developed The New Sensor With Global Automotive Supplier FAE, Culminating In A New Sensor Design That Has A Faster Response Time Than The Bosch 4.9 LSU
• Factory Calibrated Resistor Does Not Require Free-Air Calibration, But Technology Allows For Free-Air Calibration As Sensor Ages If User Desires
• Compatible With Vehicle And System Voltages Up To 16 Volt
• 0 To 5 Volt Output For Data Logging And Feedback Control, AEMnet For Data Logging And Daisy-Chaining Multiple Controllers Up To 16 Cylinders
• Can Display AFR Values In Hundredths Of Percent
• Gauge Cup Depth Only 0.200 Inch Deep
• Auto Dimming Feature
• Limited 1 Year Warranty
