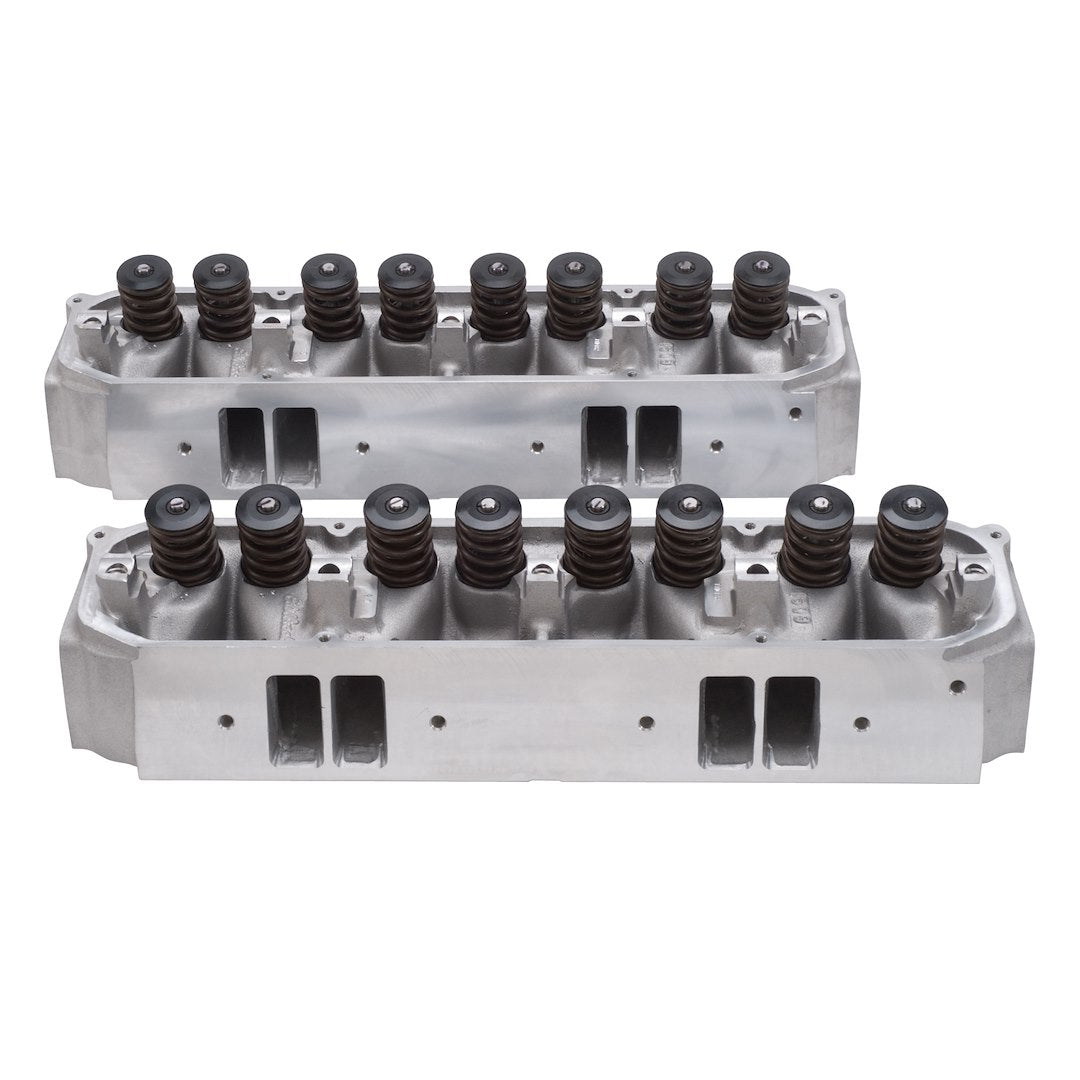

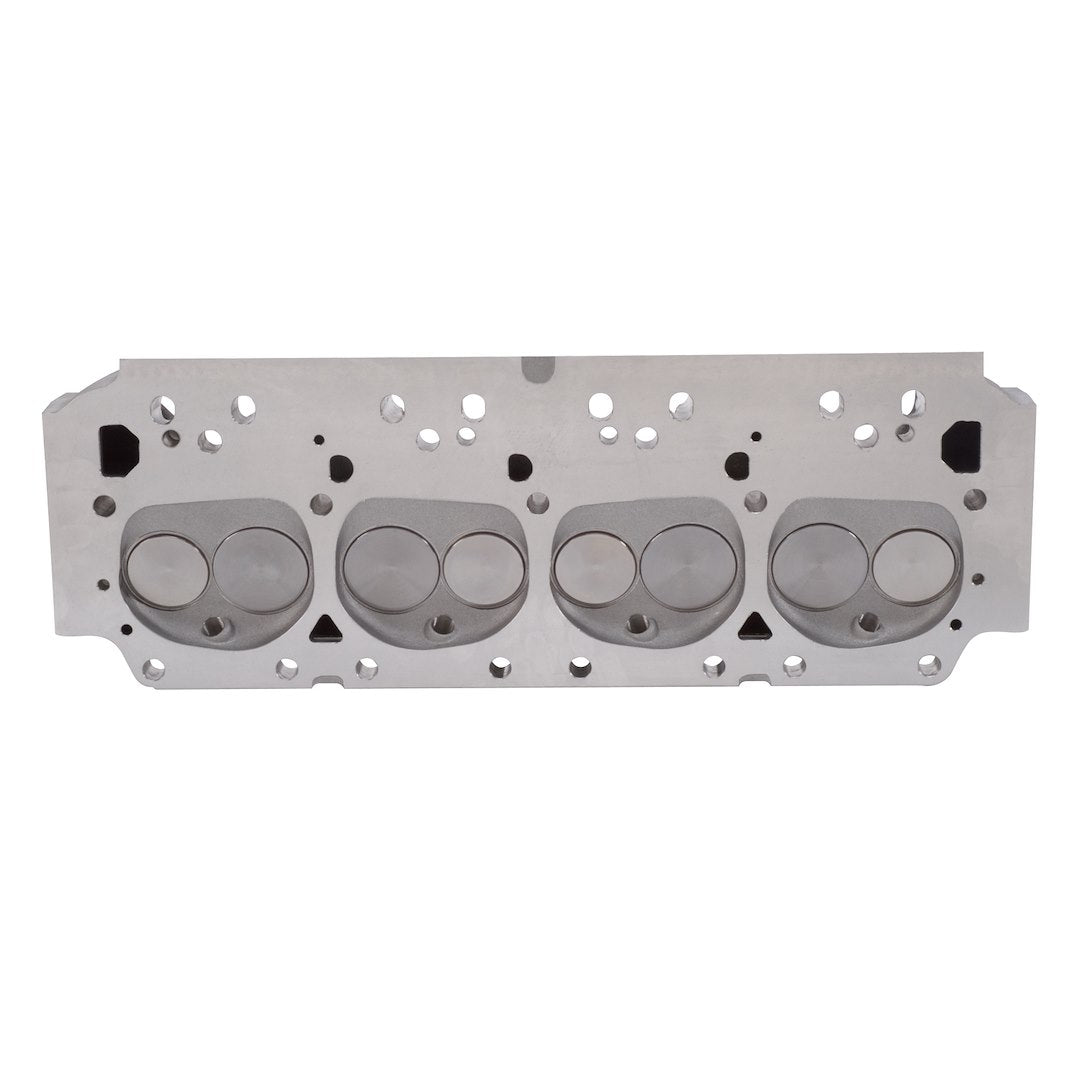

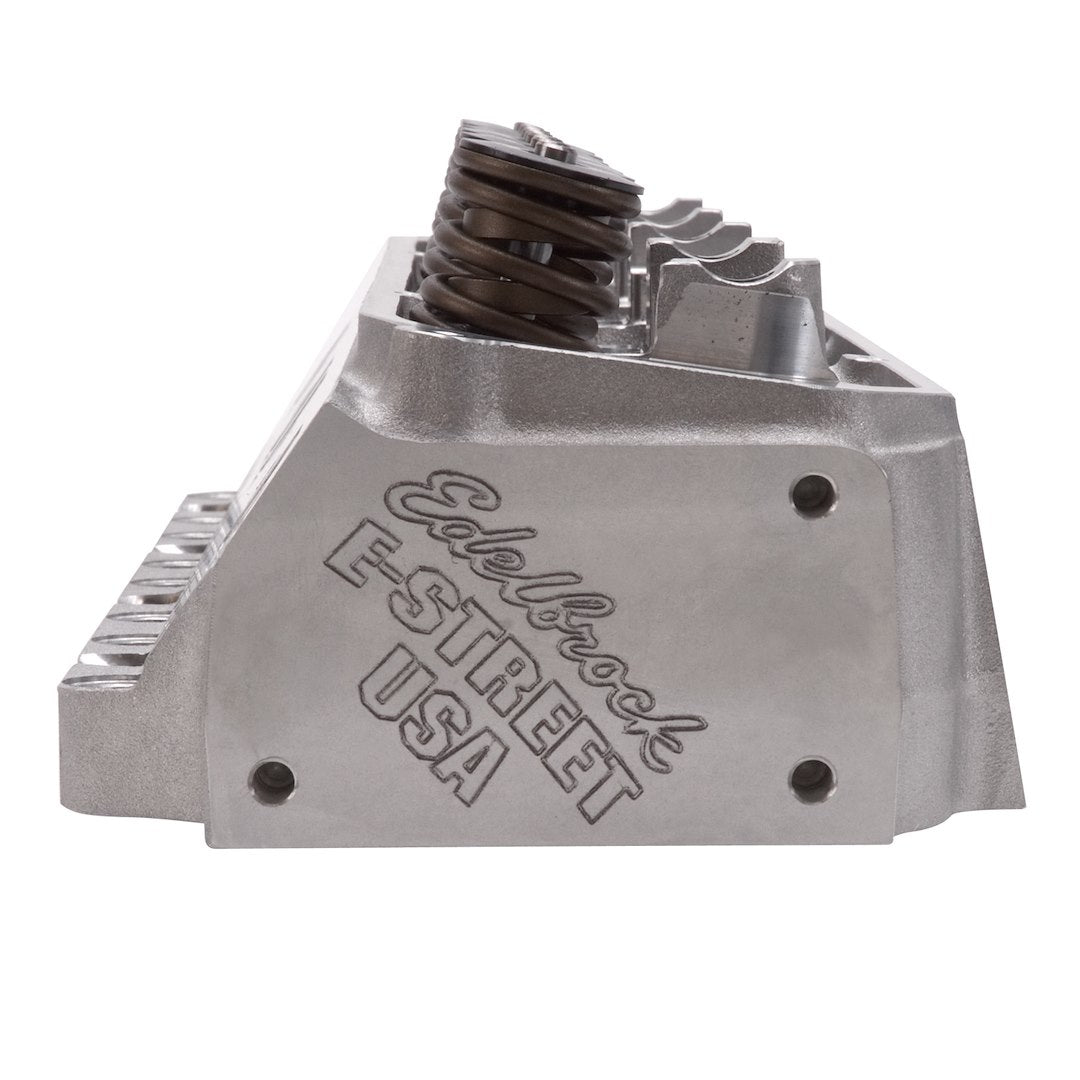

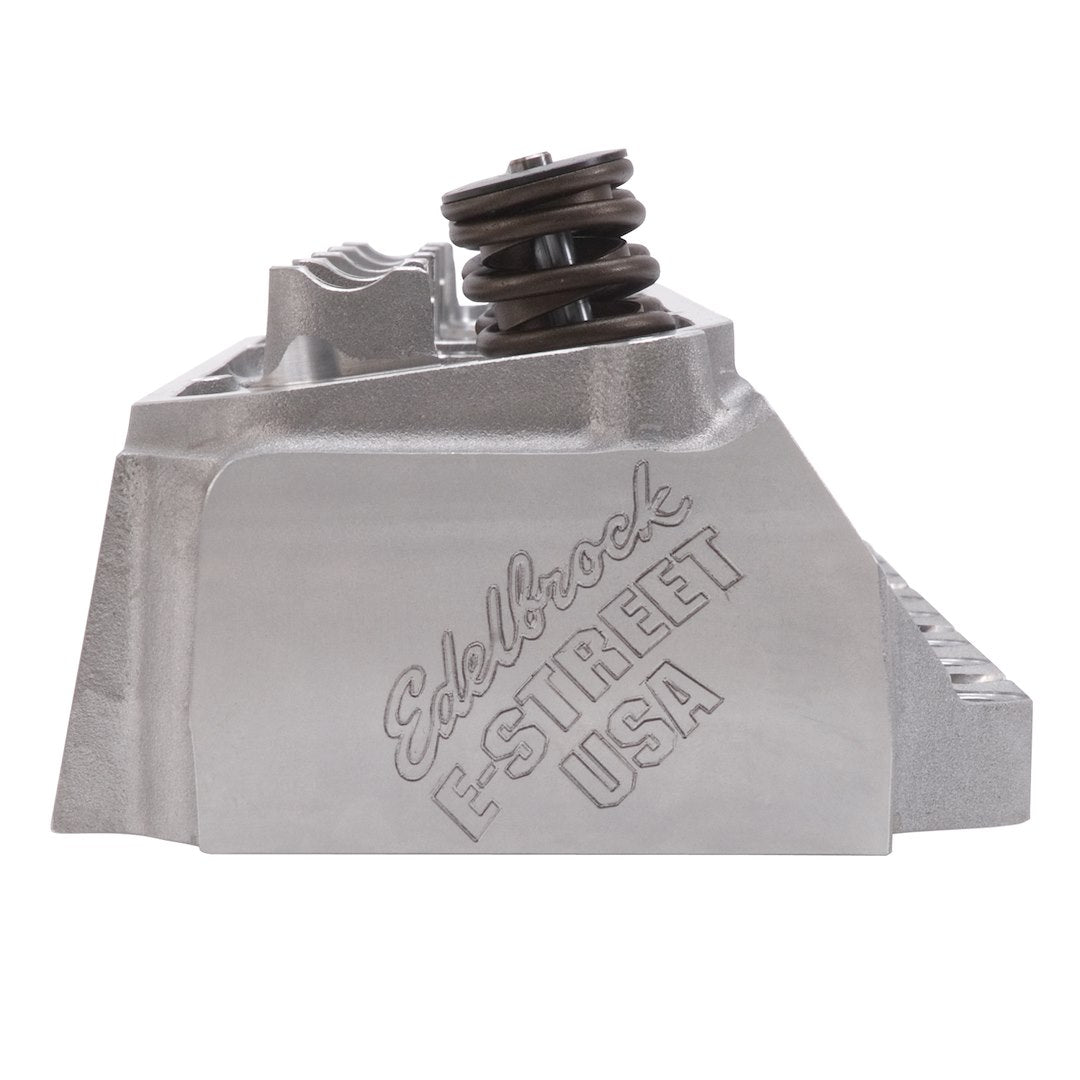

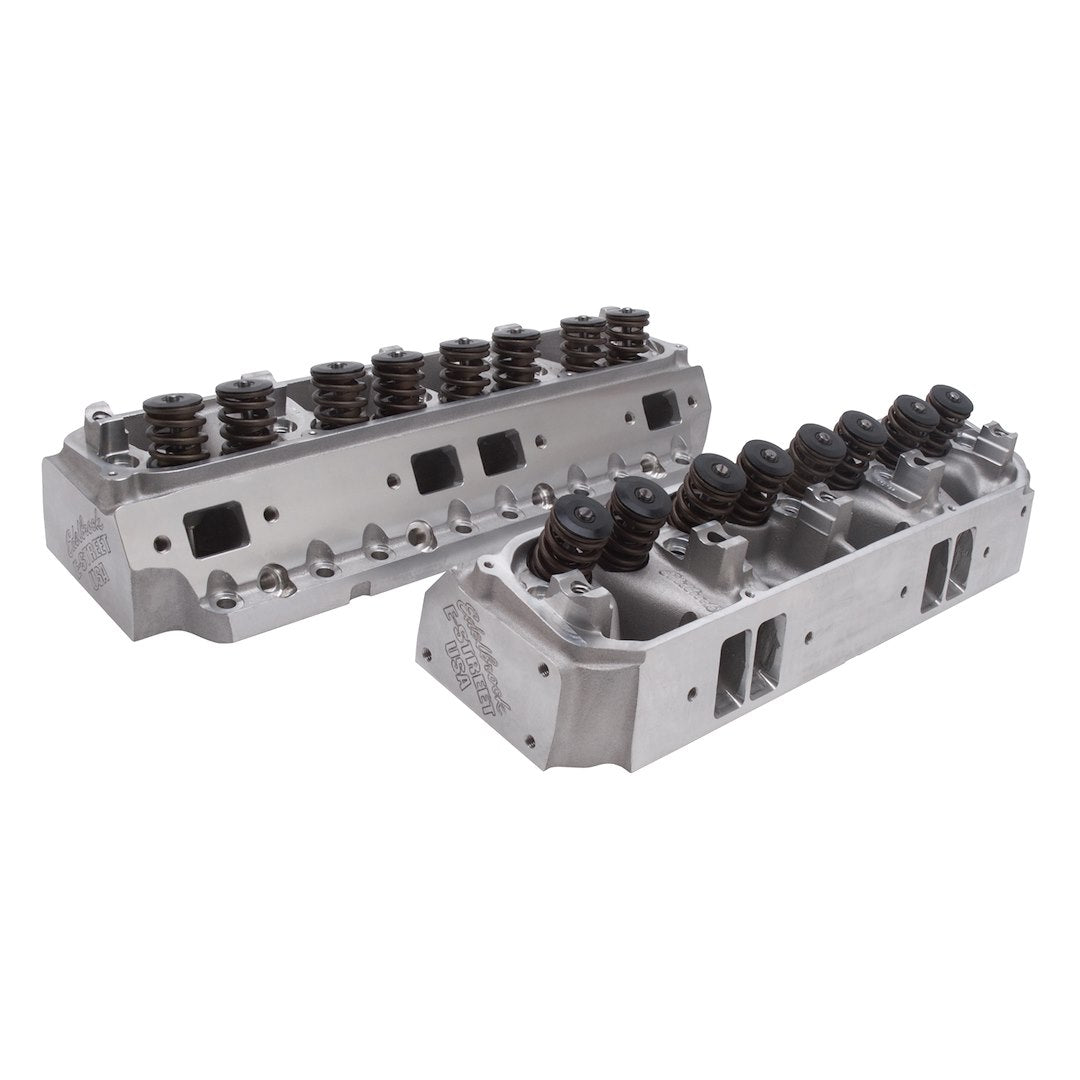

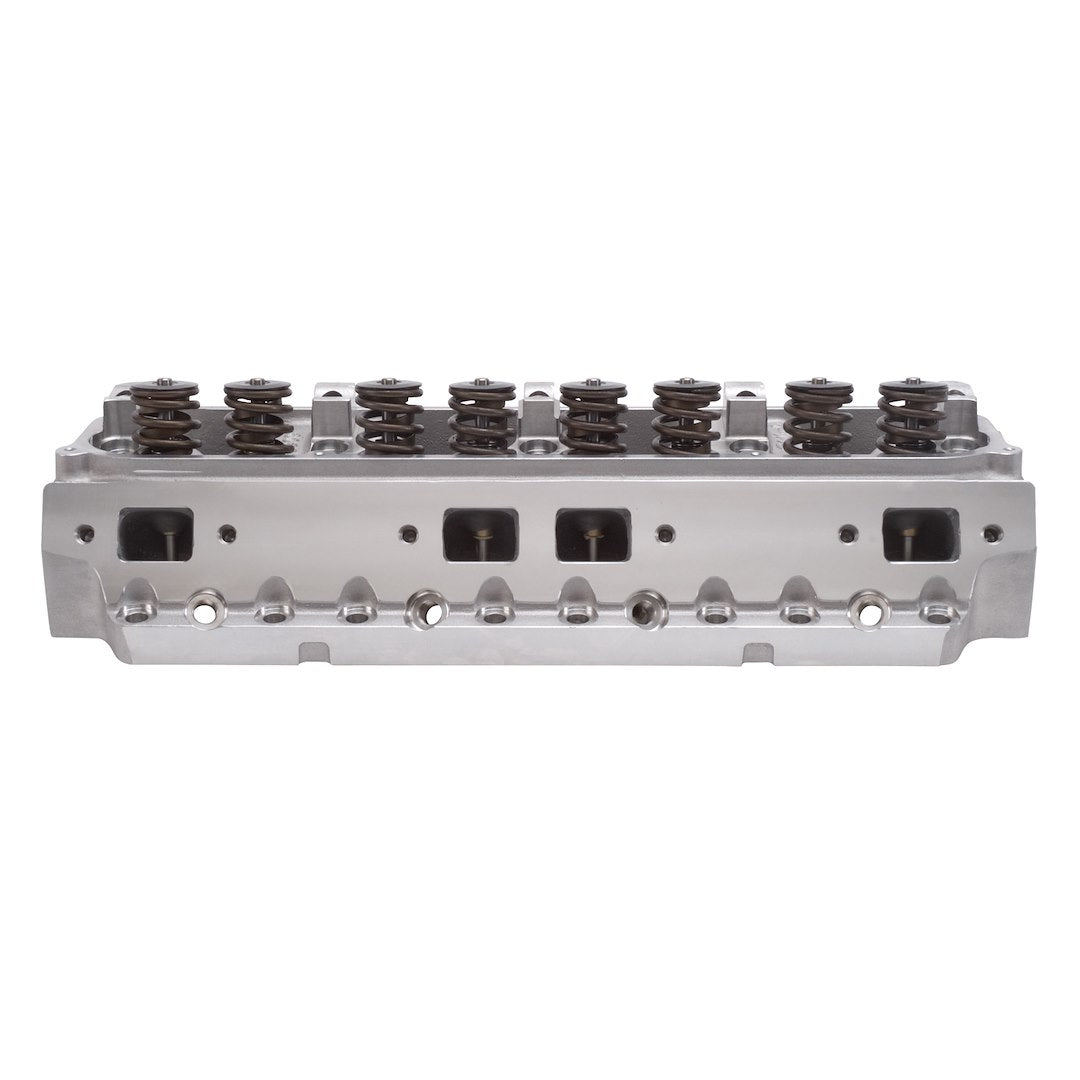

Edelbrock 5093 Cylinder Head
Edelbrock 5093 Cylinder Head is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ideal for entry-level street performance 1961 to 1979 Chrysler 361-440 C.I.D. Wedge engines operating in the idle to 5,500 RPM. The 75 Cubic Centimeters combustion chamber allows this head to be used with stock pistons, retaining the 9.5:1 compression. The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque.
- Modern Combustion Chamber Design Also Improves The Combustion Process And The Larger Than Stock Intake And Exhaust Ports Move More Air Through Your Engine
- Improve The Engine's Efficiency, Resulting In More Horsepower And Torque
- Engineered To High Standards
- Ensures Ease Of Use And Excellent Efficiency
- Limited 1 Year Warranty
[This product can expose you to chemicals Including () which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov]
Product Specifications
Product Specifications
| Condition | New |
| Engine Compatibility | Chrysler Big Block V8 5.9L-7.2L 361-440 Cubic Inch |
| Style | Assembled |
| Finish | Satin |
| Material | Aluminum |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 84 Cubic Centimeter |
| Intake Runner Volume (CC) | 210 Cubic Centimeter |
| Exhaust Runner Volume (CC) | 70 Cubic Centimeter |
| Port Shape | Rectangular |
| Intake Port Location | Standard |
| Exhaust Port Location | Standard |
| Intake Valve Diameter (IN) | 2.14 Inch |
| Exhaust Valve Diameter (IN) | 1.81 Inch |
| Includes Valves | Yes |
| Spark Plug Angle | Angled |
| Rocker Arm Nut Thread Size | No Rocker Arm Nut |
| Includes Rocker Arm Studs | No |
| Valve Lock Type | 7 Degree |
| Valve Stem Seal Type | Umbrella |
| Valve Guide Material | Manganese Bronze |
| Number Of Springs Per Valve | Single |
| Valve Seats Machined | Yes |
| Steam Holes Drilled | No |
| Machined For O-Ring | No |
| Includes Guideplates | Yes |
| Includes Damper Spring | Yes |
