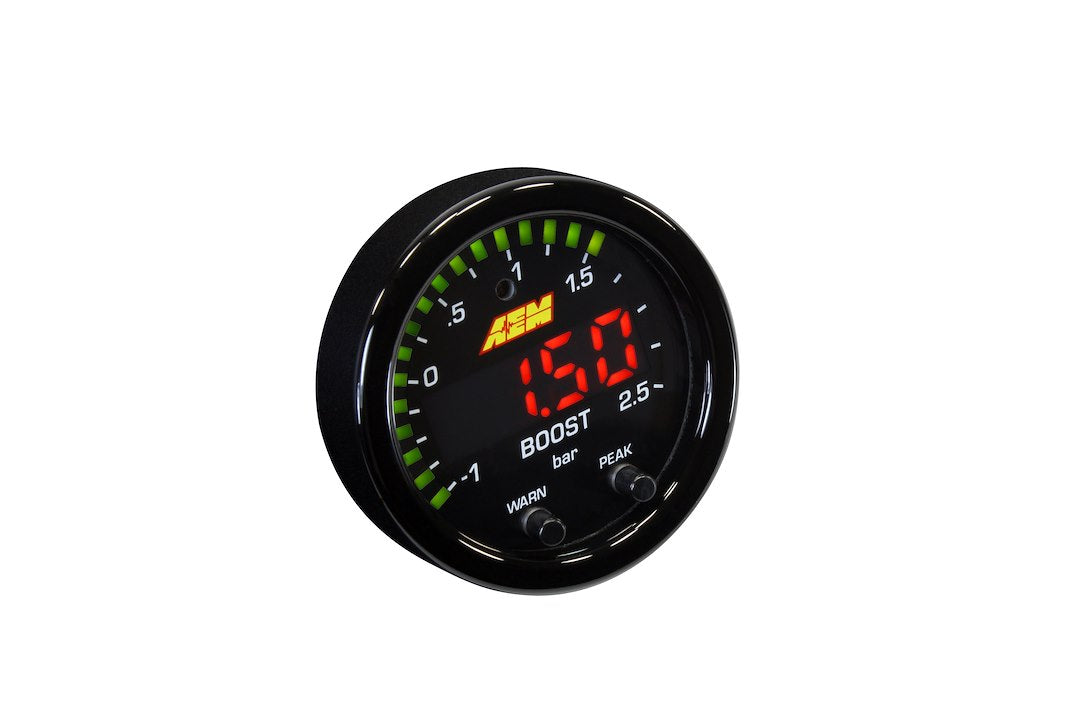

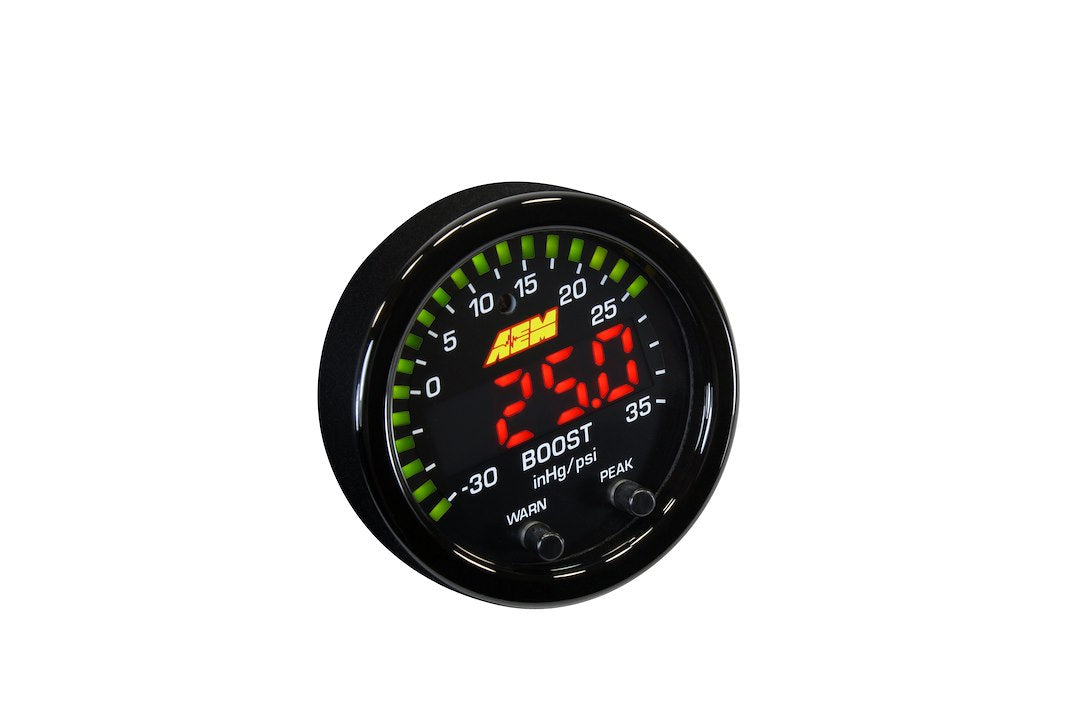

AEM Electronics X-Series Boost Display Gauge (30-0306)

More boost is always better, right? Wrong. Too little, and you're losing power, too much, and you're losing parts. The exact right level of boost is what you need. The AEM X-Series Boost Display Gauge features a bright center digital display (87% larger than previous AEM designs!) and sweeping LED needle to help you ensure boost is right where you need it at all times. That bigger, easier-to-read display doesn’t compromise mounting options, as AEM Electronics X-Series Gauges retain their standard 2-1/16-inch (52mm) diameter housing and incredibly slim overall depth of under 0.825", with a cup depth of only 0.200."

New technological features make this boost gauge easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric display, and user-selectable threshold warnings. The gauges are also AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet.

• Easy-to-read, digital boost gauge
• Black faceplate with black bezel
• 2-1/16" gauge diameter and slim 0.825" gauge depth for easy mounting
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto-dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
• Limited 1-year warranty
