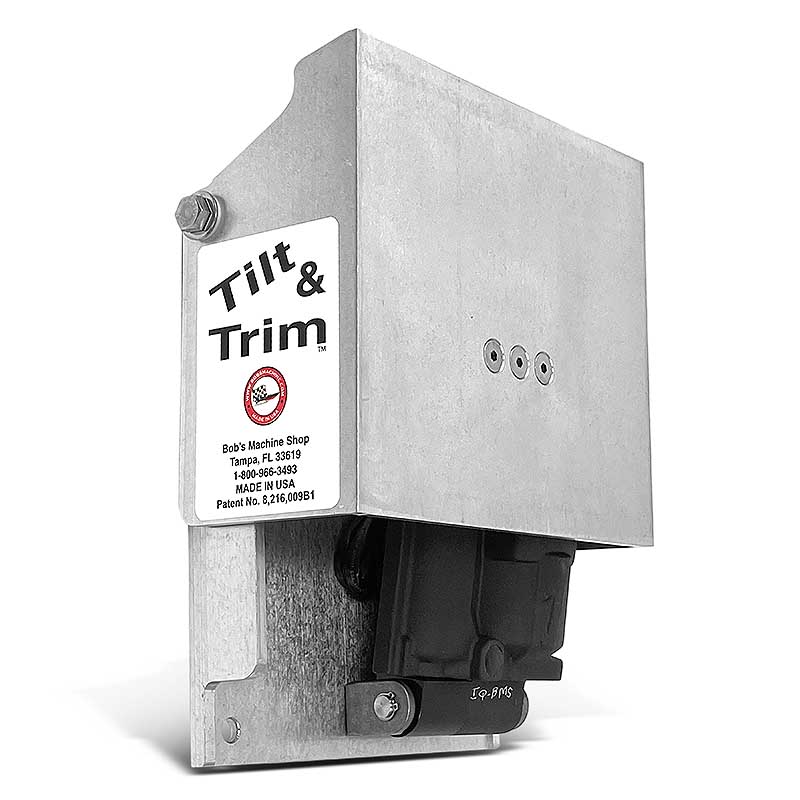

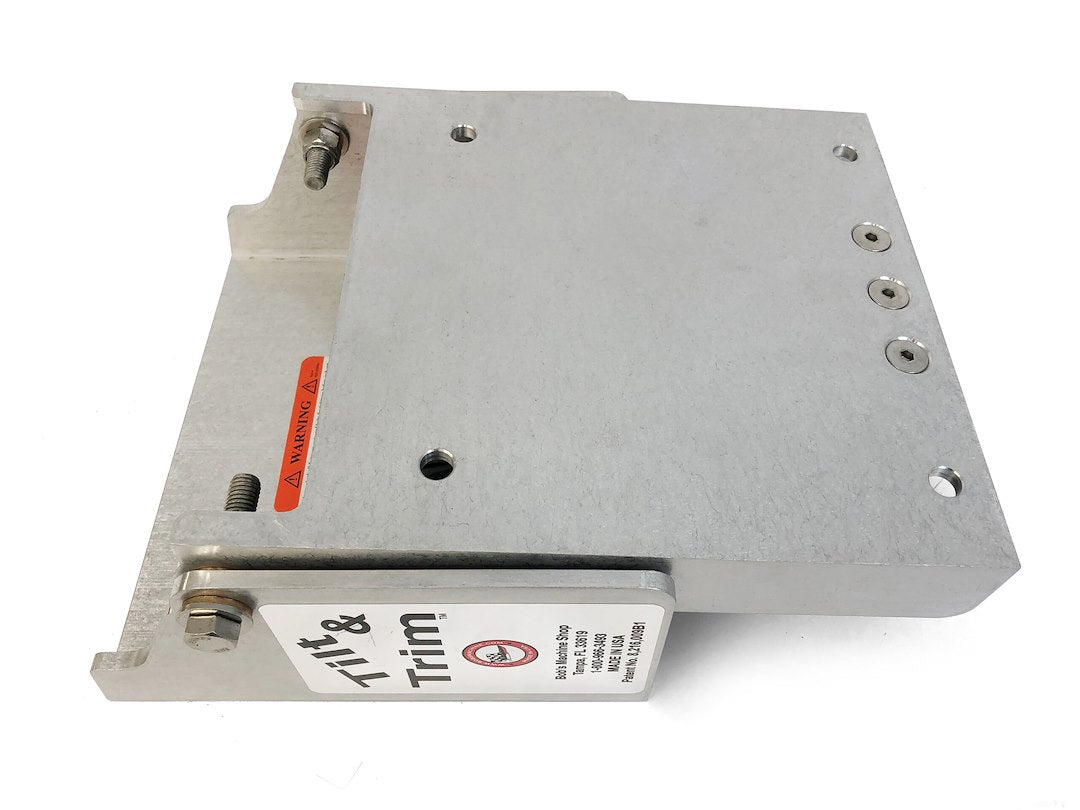

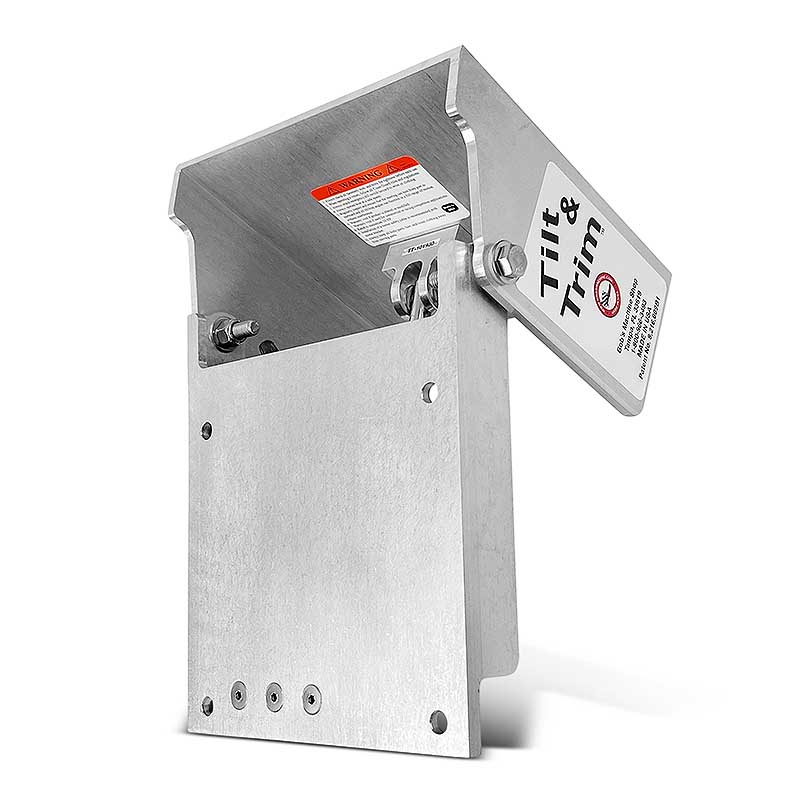

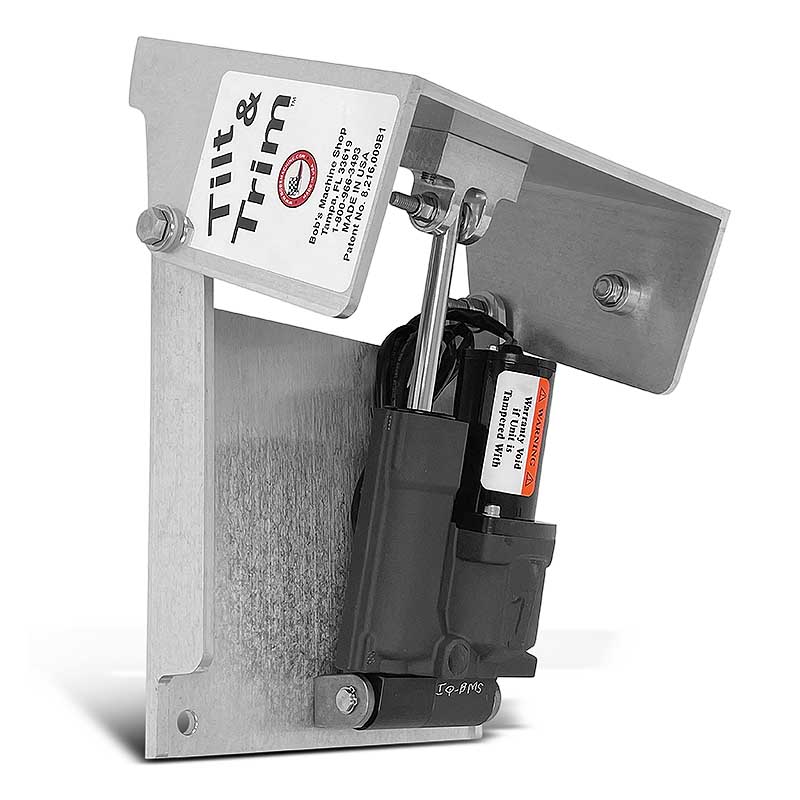

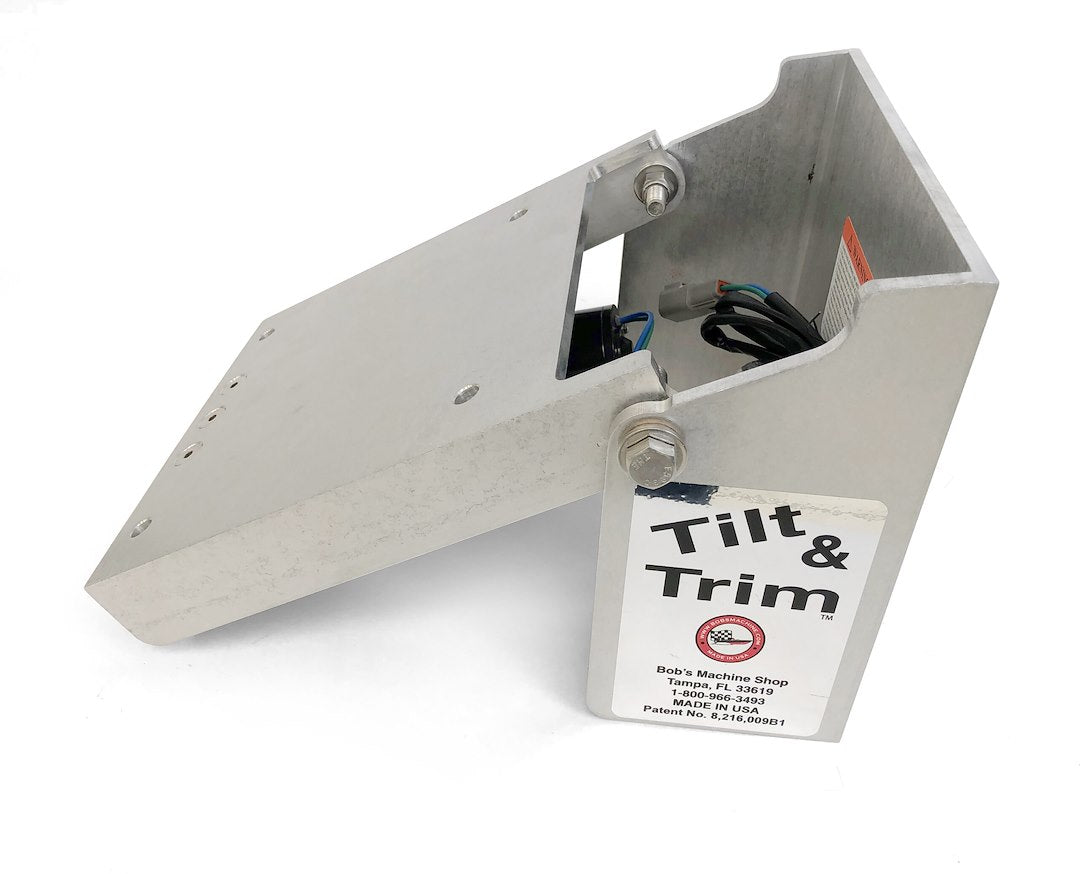

Bobs Machine 100-701100-Nopc Outboard Motor Jack Plate

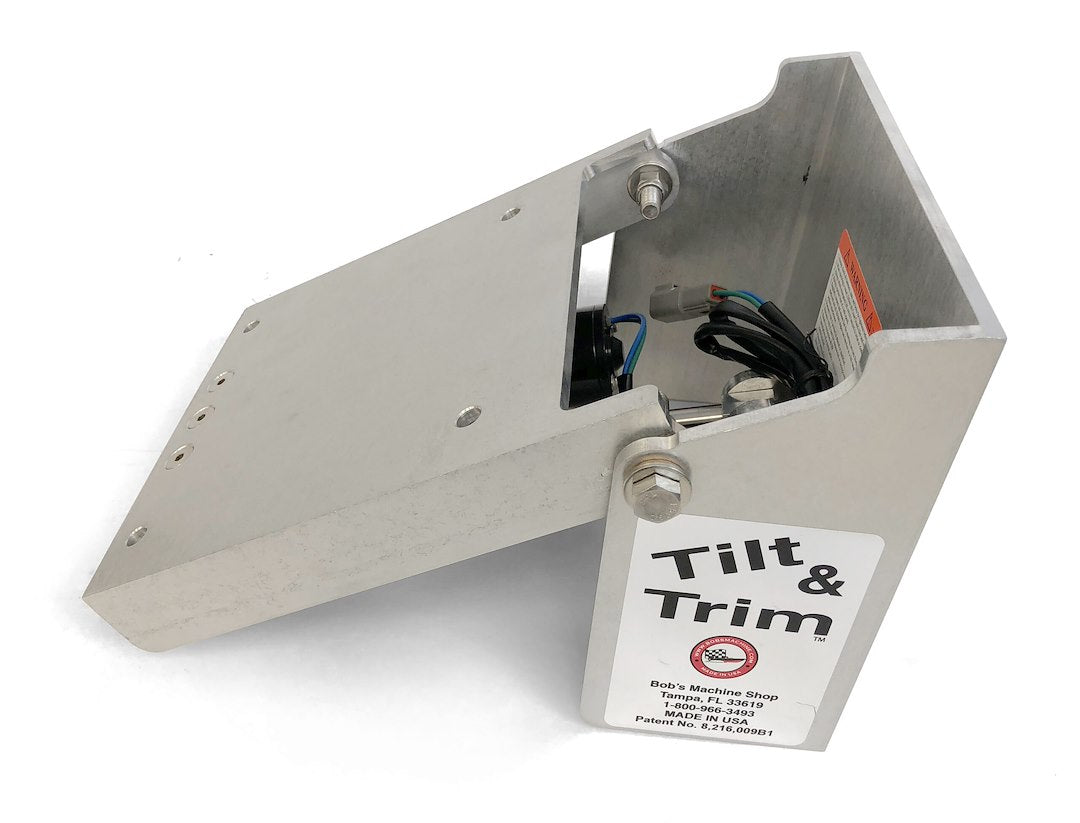

For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30 Horsepower(clamp on style only), BMS’s hydraulic Tilt and Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp. The Tilt and Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3 degree tuck under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard. The hydraulically operated Tilt and Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. The Over all mounting dimensions, which are: 10 inch wide by 11-1/2 inch length BMS’s Tilt and Trim is easy to install. Stackable spacers for the clamps included standard.
