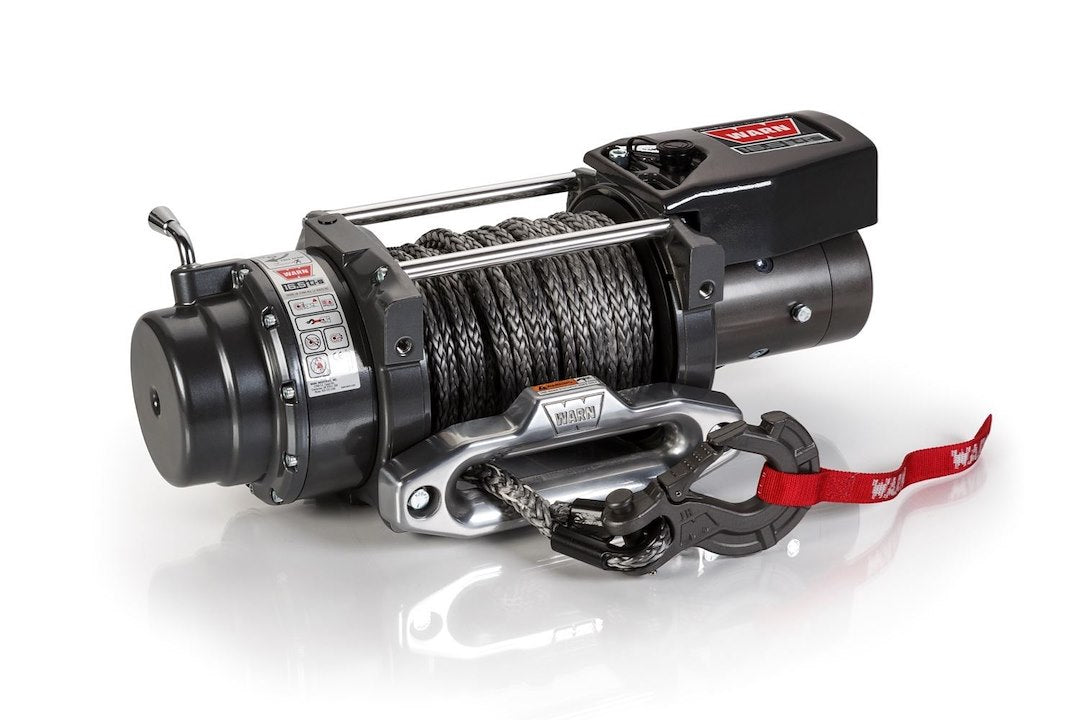

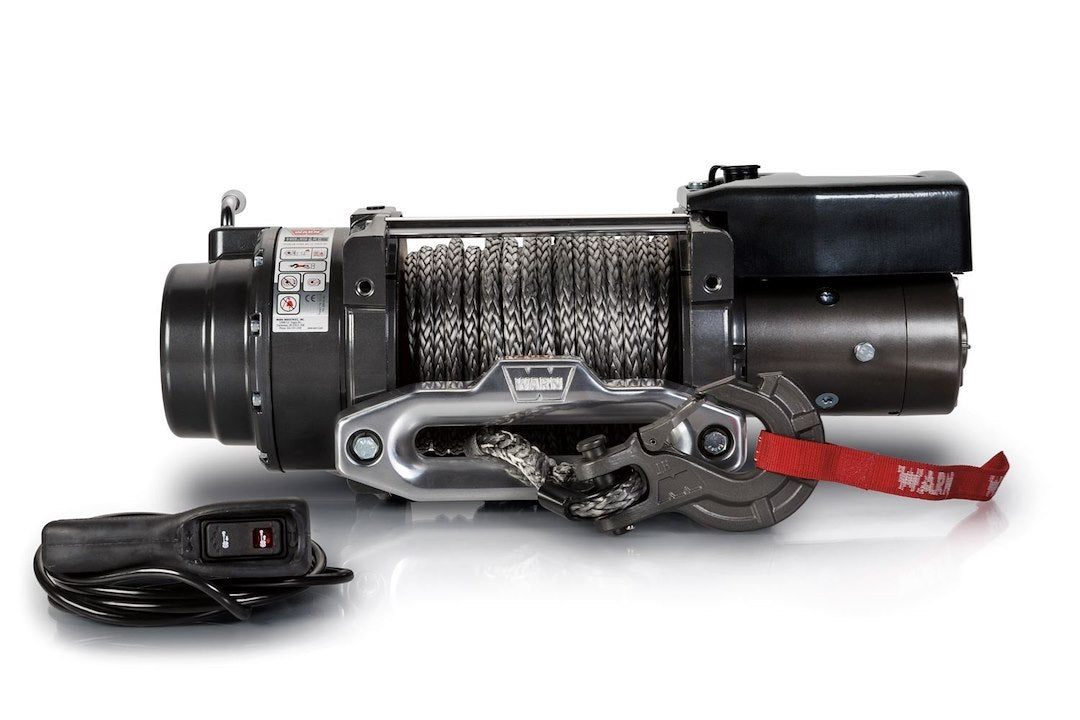

Warn 97740 16500 Pound Vehicle Recovery Winch
Warn 97740 16500 Pound Vehicle Recovery Winch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
With a massive 16,500 Pounds of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80 Foot of 3/8 Inch lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the Temperature resistant sleeve on the first layer provides maximum heat protection. This winch also features a Thermometric Indicator which provides operator feedback during the winching process, and is great for the biggest, heaviest vehicles on or off the pavement.
- Durable, Smooth Three-Stage Planetary Gear Train
- Powerful, Efficient Series-Wound Motor
- Best-In-Class Cone Brake
- Features A Thermometric Indicator Which Provides Operator Feedback During The Winching Process
- Contactor Control For The Ultimate In Reliable Electronics
- Rope's Heat-Treated Construction Provides Maximum Tensile Strength
- Temperature Resistant Sleeve On The First Layer Of Rope Provides Maximum Heat Protection
- Large-Frame Winch Architecture Mounts Feet Forward
- Limited Lifetime Warranty
[This product can expose you to chemicals Including () which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov]
Product Specifications
Product Specifications
| Winch Rating | 16500 Pound |
| Recommended Use | Vehicle Recovery |
| Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Motor Horsepower | 4.6 Horsepower |
| Thermal Shutoff | No |
| Gear Reduction Ratio | 13.125694444 |
| Free Spooling | Yes |
| Operation Type | Power |
| Line Length (FT) | 80 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Remote Type | Wired |
| Brake Type | Direct Drive Cone |
| Includes Mounting Hardware | No |
| Color | Black |

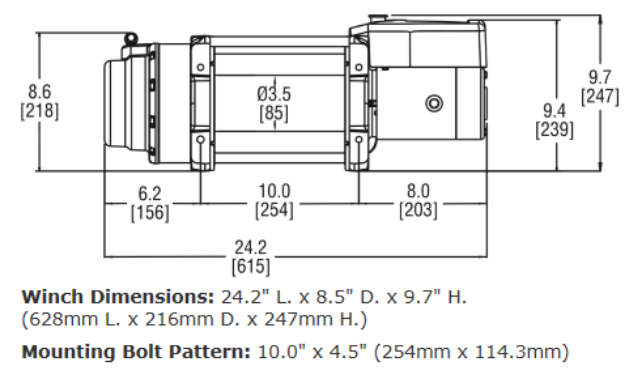

| Mounting Pattern Size | 10 Inch Length X 4-1/2 Inch Width |
| Max Amp Draw | 507 Amp Draw At 16500 Pound |
| Line Speed At Max Pull | 3.24 Feet Per Minute At 16500 Pound |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Drive Gear Type | Planetary |
| Line Diameter (IN) | 3/8 Inch |
| Mounting Hole Quantity | 4 |
| Estimated Install Time (Hours) | 2 |
